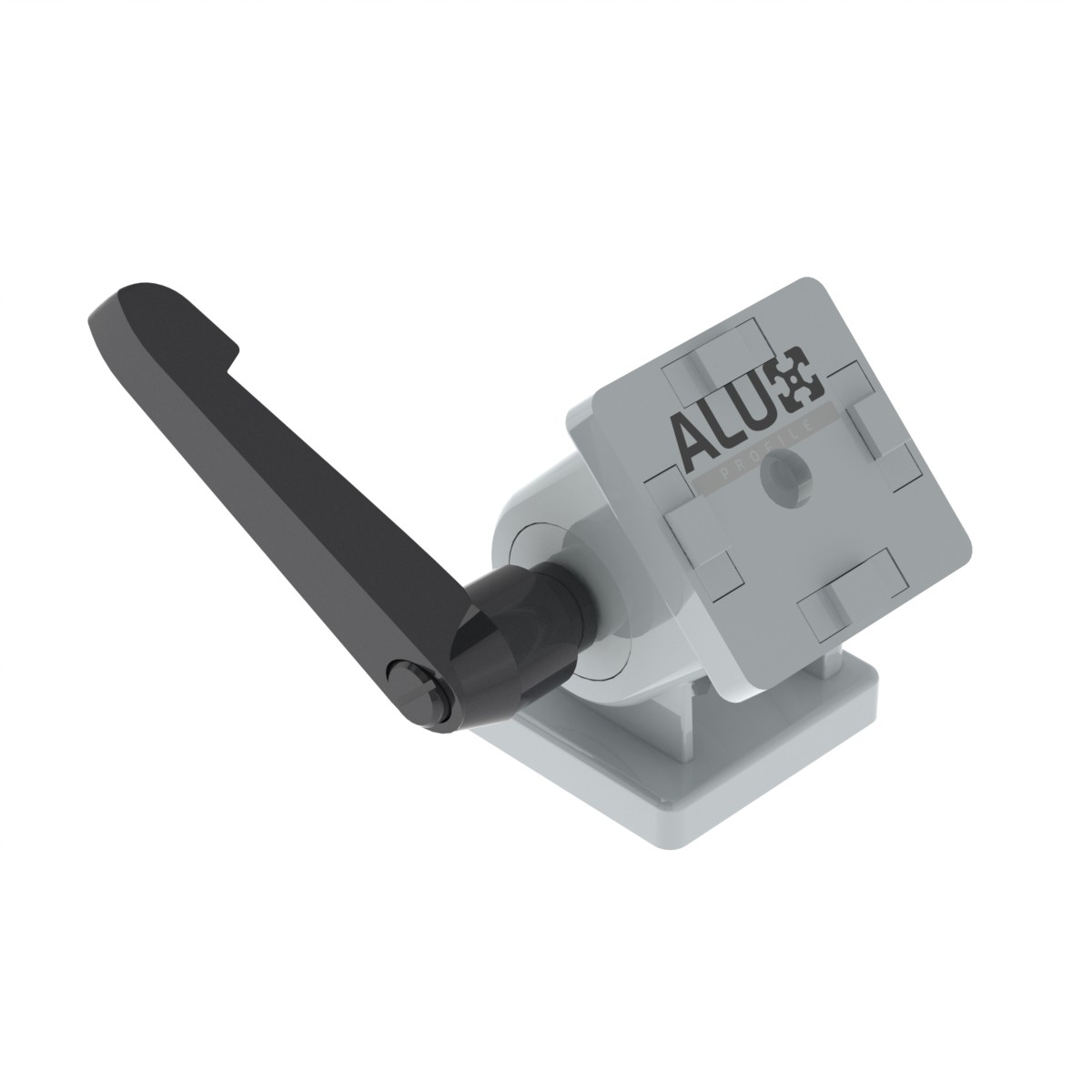

Pivot Joint 45 with Locking Lever – for 45-Series Aluminium Profiles

The Pivot Joint 45 with Locking Lever is a heavy-duty adjustable hinge connector for 4545 Aluminium profiles with Slot 8 or Slot 10. It allows two profiles or a profile and panel to pivot smoothly and then lock securely at the desired angle— ideal for adjustable guards, folding structures, doors, access hatches and workstations.

Key Benefits

• Lockable adjustability: Precisely set and secure the angle with the integrated locking lever—perfect for repeatable positioning and quick adjustments.
• Wide opening range: Opening angle of approximately 178°, ideal for both open and folded configurations.
• Strong, industrial design: Zinc die-cast body with a glass-fiber reinforced PA lever for durability and long service life.
• Clean integration: Compact form factor designed for 45-series framing, keeping assemblies streamlined without bulky brackets.

System Compatibility

Designed for 45-Series aluminium profiles with Slot 8 or Slot 10. Fully compatible with BSB, BSP, B-Type and BOSCH Rexroth profile systems, ensuring universal fit with most European modular framing standards.

Typical Applications

• Adjustable guards, doors and access panels
• Tilting jigs, fixtures and machine frames
• Folding structures, arms and articulated supports
• Monitor mounts, positioning systems and modular furniture

How It Works

1. Attach the joint halves to the two members (profile–profile or profile–panel) using Slot-8 or Slot-10 hardware.
2. Adjust the joint to the desired angle (up to ~178°), then tighten the lever to lock the position firmly.
3. Loosen the lever for repositioning; retighten to secure the new angle.

Technical Details

• Part No.: Pivot Joint 45 with Locking Lever
• Profile/slot: 45-series, Slot 8 / Slot 10
• Opening angle: ~178°
• Bore ØD (mounting): ~8.5 mm
• Materials: Zinc die-cast body; PA-GF locking lever
• Approx. weight: ~317 g

What’s Included

• Pivot joint assembly with locking lever

Why Choose This Connector?

Compared to fixed brackets or standard hinges, the Pivot Joint 45 with Locking Lever provides precise, tool-free angle adjustment and secure locking. It’s the perfect choice for dynamic assemblies on 45-series or compatible B-Type/BOSCH Rexroth frames where strength, stability and adjustability are key.
