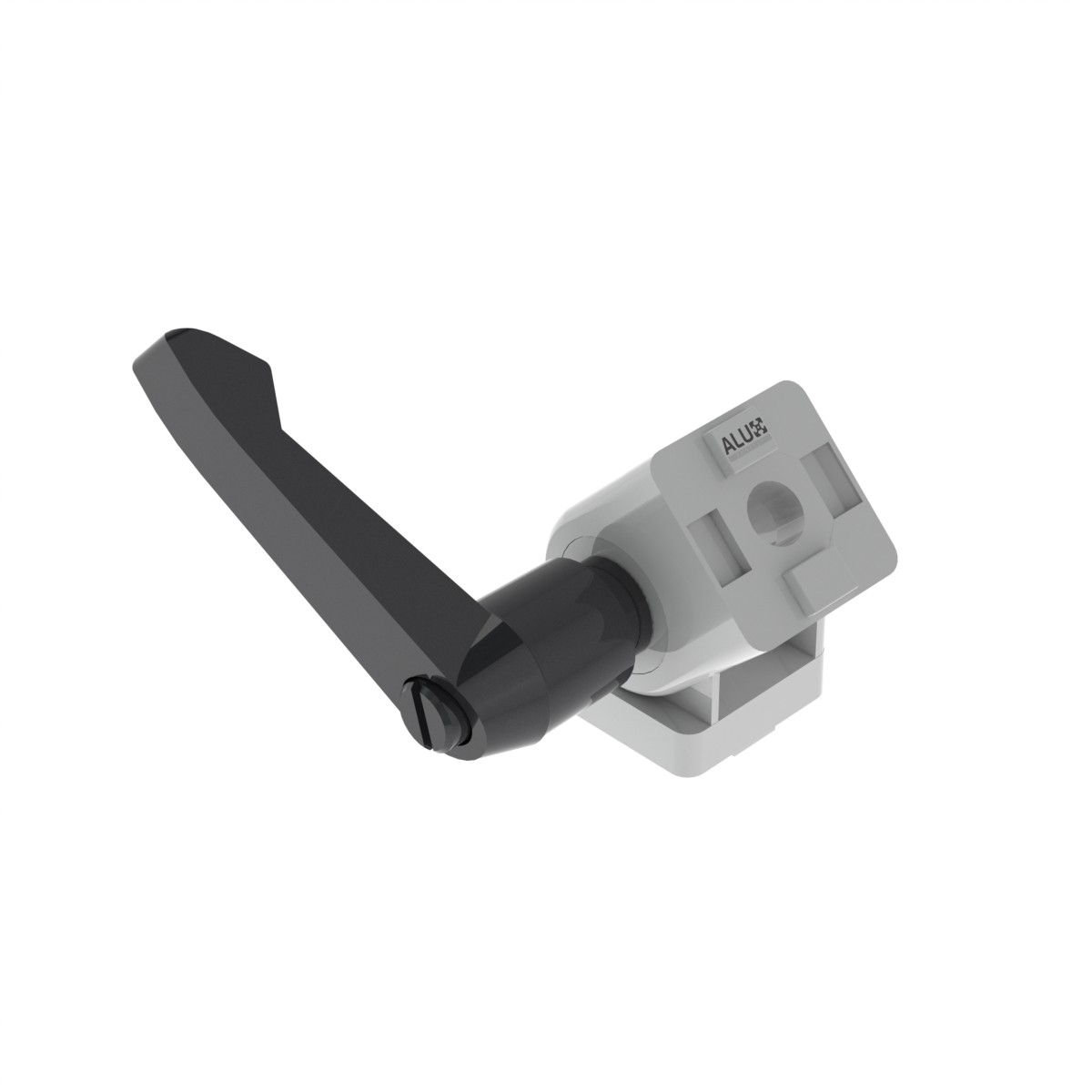

Pivot Joint 20 with Locking Lever – for 20-Series Aluminium Profiles

The Pivot Joint 20 with Locking Lever is a compact, adjustable hinge connector for 2020 aluminium profile with Slot 5 or Slot 6. It allows two profiles or a profile and panel to pivot smoothly and then lock securely at the desired angle — ideal for small frames, adjustable guards, doors, lids and lightweight fixtures.

Key Benefits

• Lockable adjustability: Quickly set and lock the angle with the integrated lever — perfect for precise and repeatable positioning.
• Wide opening range: Opening angle of approximately 182°, suitable for both open and folded configurations.
• Durable and lightweight design: Zinc die-cast body with glass-fiber reinforced PA lever ensures stability with a low total weight of only 55 g.
• Neat integration: Designed for 20-series framing systems, keeping assemblies compact and professional.

System Compatibility

Designed for 20-Series aluminium profiles with Slot 5 or Slot 6. Fully compatible with V-slot, BSB, BSP, B-Type and BOSCH Rexroth aluminium profile systems, ensuring full interchangeability with standard European modular framing solutions.

Typical Applications

• Lightweight doors, guards and access panels
• Tilting frames, sensor brackets and display arms
• Foldable or adjustable fixtures and test assemblies
• Compact mechanical and automation systems

How It Works

1. Attach both halves of the joint to the profiles (profile–profile or profile–panel) using Slot-5 or Slot-6 fasteners.
2. Adjust the desired angle (up to ~182°), then tighten the lever to lock it firmly in place.
3. Loosen the lever to reposition; retighten to secure again.

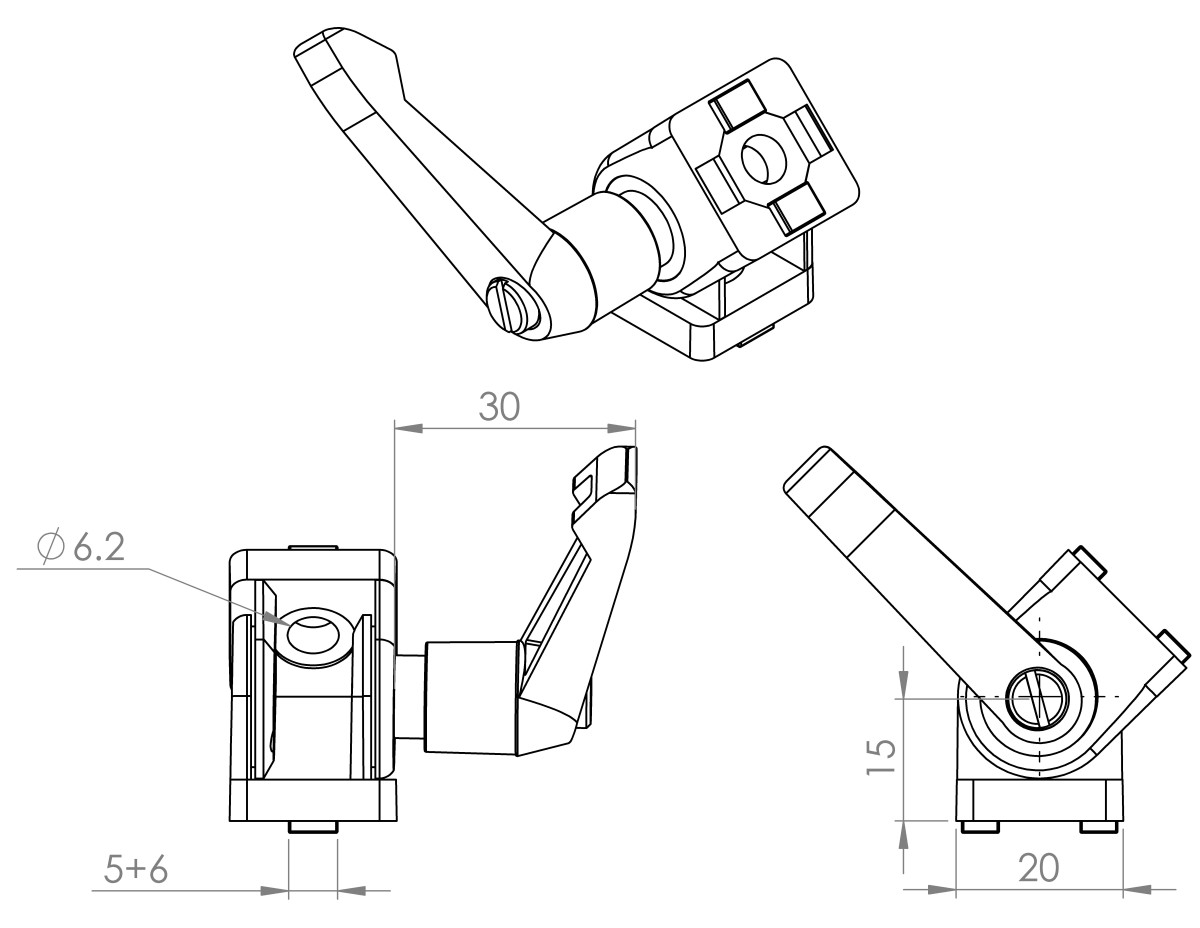

Technical Details

• Part No.: Pivot Joint 20 with Locking Lever
• Profile/slot: 20-series, Slot 5 / Slot 6
• Opening angle: ~182°
• Bore ØD (mounting): ~6.2 mm
• Materials: Zinc die-cast body; PA-GF locking lever
• Approx. weight: ~55 g

What’s Included

• Pivot joint assembly with locking lever

Why Choose This Connector?

Compared to fixed hinges, the Pivot Joint 20 with Locking Lever allows precise, tool-free angle adjustment with secure locking. It’s the ideal connector for 20-series or compatible V-slot/BOSCH Rexroth frames where light weight, versatility and smooth operation are essential.
