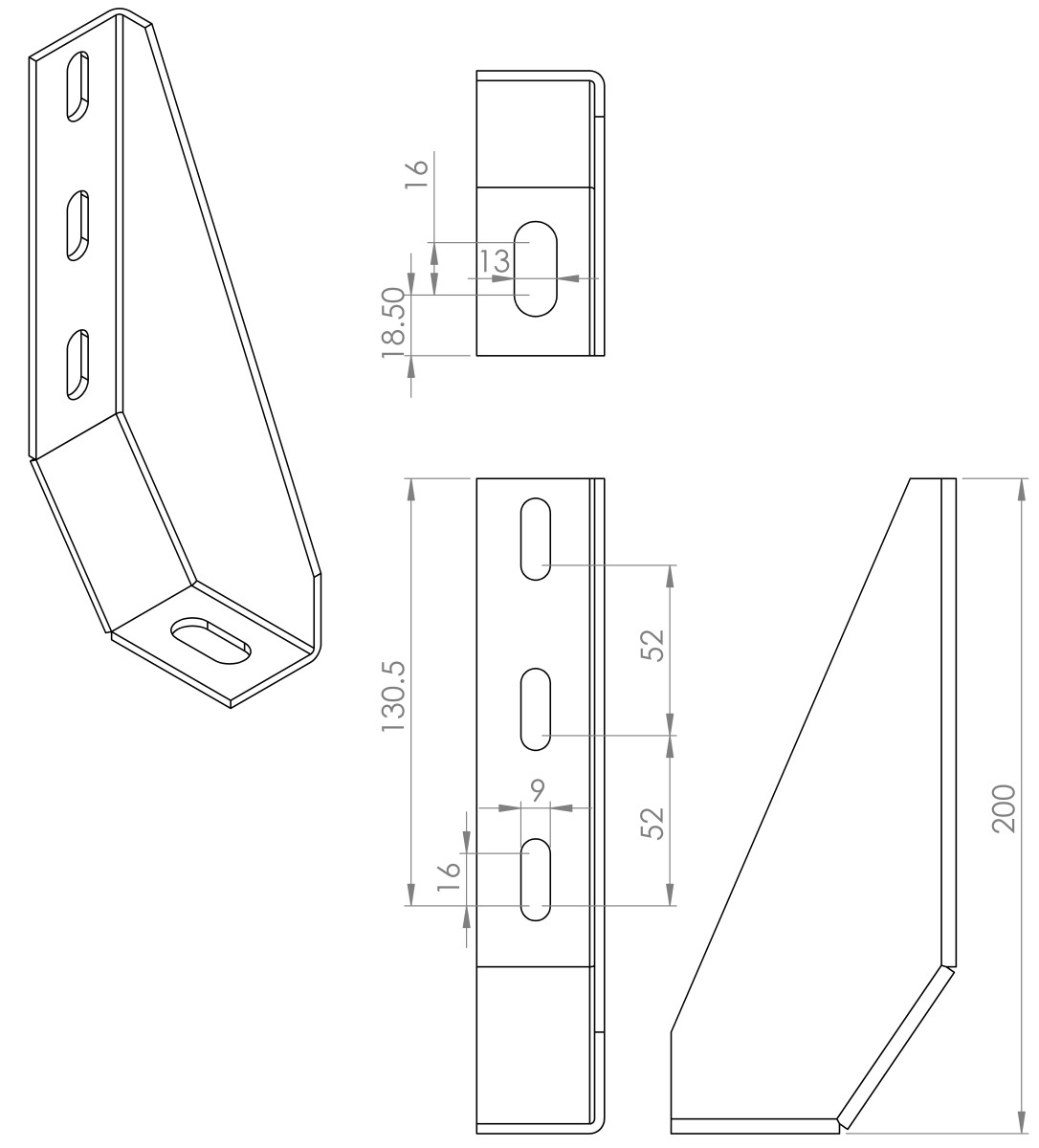

Floor Bracket 200 for 40-Series Aluminium Profiles

The Floor Bracket 200 is a heavy-duty base element engineered to anchor 40-series or 45-series aluminium profile frames to concrete or steel floors. Made of steel with a black powder-coated finish, this bracket ensures a stable and secure connection with a sleek industrial aesthetic.

Key Benefits

• Heavy-duty floor anchoring: Designed to support large frames and structures built with 40-series or 45-series profiles, offering increased stability under high loads.
• Professional finish: Black powder-coated steel gives a refined appearance and corrosion resistance.
• Quick installation: Suitable for 40-series and 45-series profiles with M8 hardware; floor anchor holes are pre-designed for straightforward fixing.
• Versatile compatibility: Suitable for 40 and 45series profiles with slot 8 or slot 10.
• Durable construction: Steel body, powder-coated finish, approximate weight ~456 g.

System Compatibility

Designed for 40-series extrusion systems and up, compatible with profile sizes 40 and 45, and slot systems 8 or 10. Use with M8 anchoring screws into floor substrate.

Typical Applications

• Supporting machine frames and automated production cells
• Structure anchoring in safety guarding and industrial enclosures
• Stabilised mounting for workstations, racks and heavy-duty frames
• Heavy modular frame systems requiring robust floor fixing

What’s Included

• 1 × Floor Bracket 200 (black powder-coated)

Technical Notes

• Material: Steel, black powder-coated finish
• Install detail: Requires floor anchors appropriate to substrate (concrete or steel), not included
• Weight: Approx. 456 g

Why Choose This Floor Element?

This bracket offers a premium, industrial finish with high load capacity and compatibility across multiple profile sizes. Perfect for large-scale modular aluminium frame installations where strength and aesthetics matter.
