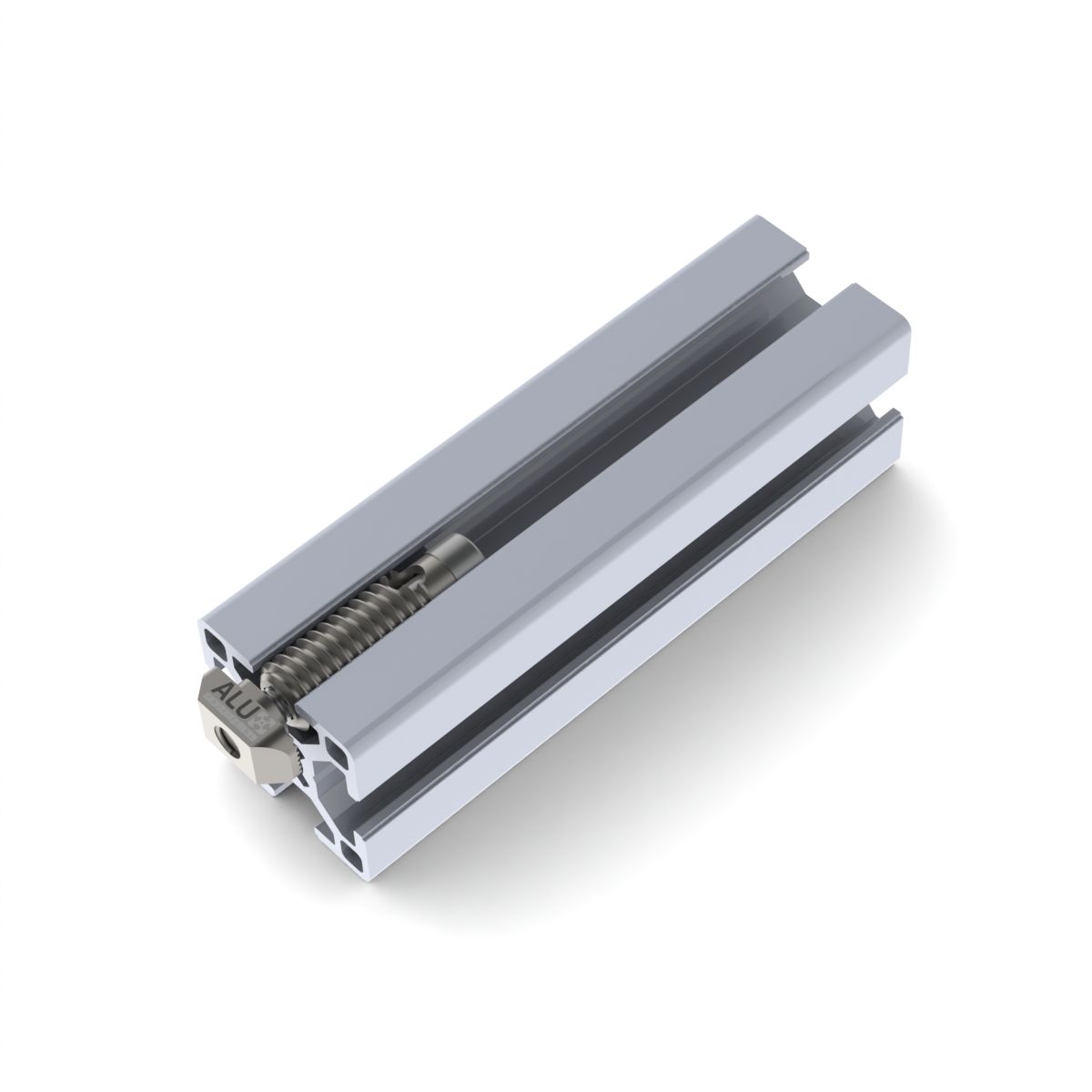

Automatic connector 30 (threaded sleeve) – fast internal connection for 30-series aluminium profiles

The Automatic connector 30 is a compact threaded sleeve designed to connect two 30-series aluminium T-slot profiles quickly and securely—typically in a 90° joint (e.g., 3030 to 3030 or 3030 to 3060). Thanks to its self-cutting thread, you can build strong internal connections with a clean exterior finish.

Because it is compatible with 30 series profiles, it is also fully compatible with BSB, BSP, B-Type and Bosch profile systems—ensuring seamless integration with leading European standards.

Important: connector sleeve only (connection kit required)

This product is the threaded sleeve only. To make a complete connection, you also need:

• Hexagon socket head cap screw ISO 4762 M5x35
• And one of the following nuts:
  • Hammer nut, T-slot 8 M5
  • Roll-in T-slot nut, 30-series M5

Installation notes (important)

• Counterclockwise thread: this threaded sleeve has a left-hand (counterclockwise) thread. Install it by turning counterclockwise—opposite to how you would normally fasten a connector.
• Insert orientation: the side with the hole must go into the profile first.

Key benefits

• Fast and solid connection: designed for quick internal joining of 30-series profiles
• Clean look: internal connector keeps the outside of the frame neat
• Self-cutting thread: helps simplify assembly (no complex machining required for the connector itself)
• System compatibility: fits 30-series / slot 8 systems including BSB, BSP, B-Type and Bosch-style profiles

Typical use

• Connecting two profiles at right angles (90°)
• Common combinations: 3030 and 3060 profiles
• Frames, enclosures, workstations, light automation structures

How the connection works (overview)

1. Insert the Automatic connector 30 into the profile end as intended for the joint, with the hole-side first.
2. Turn the sleeve counterclockwise to install it (left-hand thread).
3. Use the ISO 4762 M5x35 screw together with either a hammer nut or a roll-in T-slot nut to clamp the profiles together.
4. Tighten until the joint is firmly secured.

Compatibility

• Profile series: 30-series aluminium profiles
• Slot size: 8 mm (slot 8)
• Compatible systems: BSB, BSP, B-Type, Bosch-style 30-series standards
