Inner Bracket 3-Way for T6 Aluminium Profiles – Connector for 20×20 mm V-Slot Extrusions

Product Description

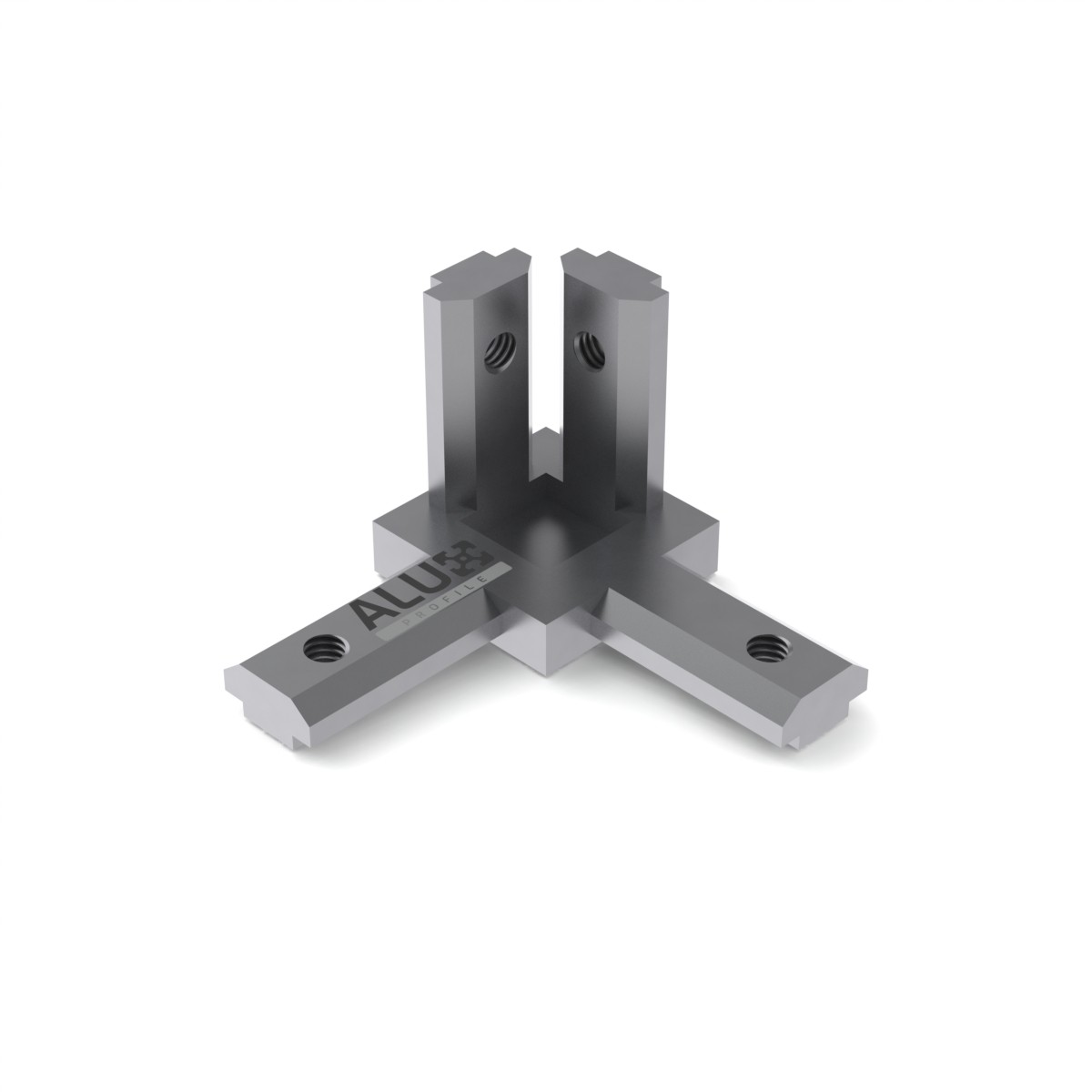

The Inner Bracket 3-Way for T6 aluminium profiles is a practical and elegant connector designed to join three aluminium extrusion profiles of size 20×20 mm V-Slot at right angles. It offers a clean, hidden connection inside the profiles, ideal for open-frame structures and lightweight assemblies where aesthetic and space efficiency are priorities.

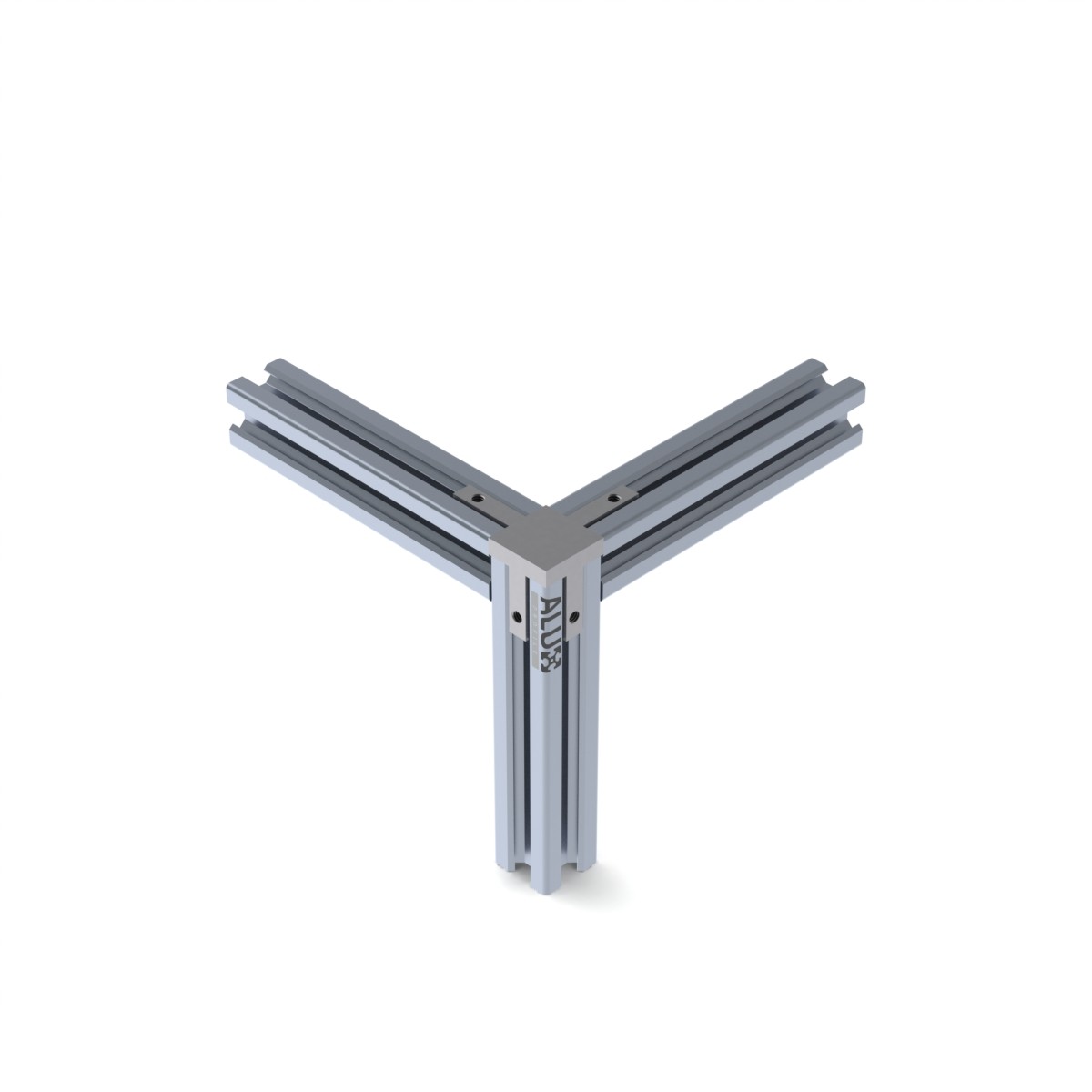

This internal aluminium connector allows you to build rigid frames without external brackets, keeping the external surfaces of your aluminium extrusion system completely free. The bracket is installed by inserting it into the core of each extrusion and tightening the included DIN 914-M4×6 set screws with a hex key – no special tools required.

Manufactured from high-strength aluminium alloy, the 3-way internal bracket combines light weight, corrosion resistance, and long-term stability. The precise geometry ensures alignment between the three connected aluminium profiles, guaranteeing accuracy for automation, robotics, CNC, 3D printing, and other mechanical structures based on aluminium profile systems.

Applications

• Construction of open-frame aluminium extrusion systems
• 3D printers, laser cutters, CNC machines, and robotic structures
• Modular furniture, display frames, and custom t-slot aluminium enclosures
• Lightweight aluminium structural frames and prototypes
• Industrial and educational projects using aluminium constructieprofielen

Advantages

• Hidden connection – the bracket remains invisible after installation
• Fast assembly using standard M4 set screws (included)
• Clean design for open and aesthetic aluminium frames
• Fully compatible with 2020 and 2020-BLACK aluminium extrusion profiles
• Ideal where compact joints and visual simplicity are needed

Technical Details

• Material: Aluminium alloy
• Color: Natural silver
• Profile Compatibility: V-Slot / T-Slot 20×20 mm (T6 slot)
• Fasteners: DIN 914-M4×6 set screws included
• Installation: Insert and tighten with a hex key – no drilling required

Why Choose Aluxprofile?

Aluxprofile is your trusted supplier of aluminium profiles, aluminium extrusion systems, and aluminium constructieprofielen across Europe. With a large inventory, fast shipping, and CAD files available, we ensure reliable connections for every aluminium profile konstrukcyjne project. The Inner Bracket 3-Way T6 combines design quality, functionality, and precision – the perfect choice for structural and modular aluminium assemblies.
