Alux

Aluminium slot profile 3030

Article number 3030
100 + in stock
Weight: 0,8430 kg
EAN-number 6090910676604
9,49
11,48 Included 21% VAT
Configure your product
Total price per piece 0,00

Description
Detailed technical information
Attachments
Order together

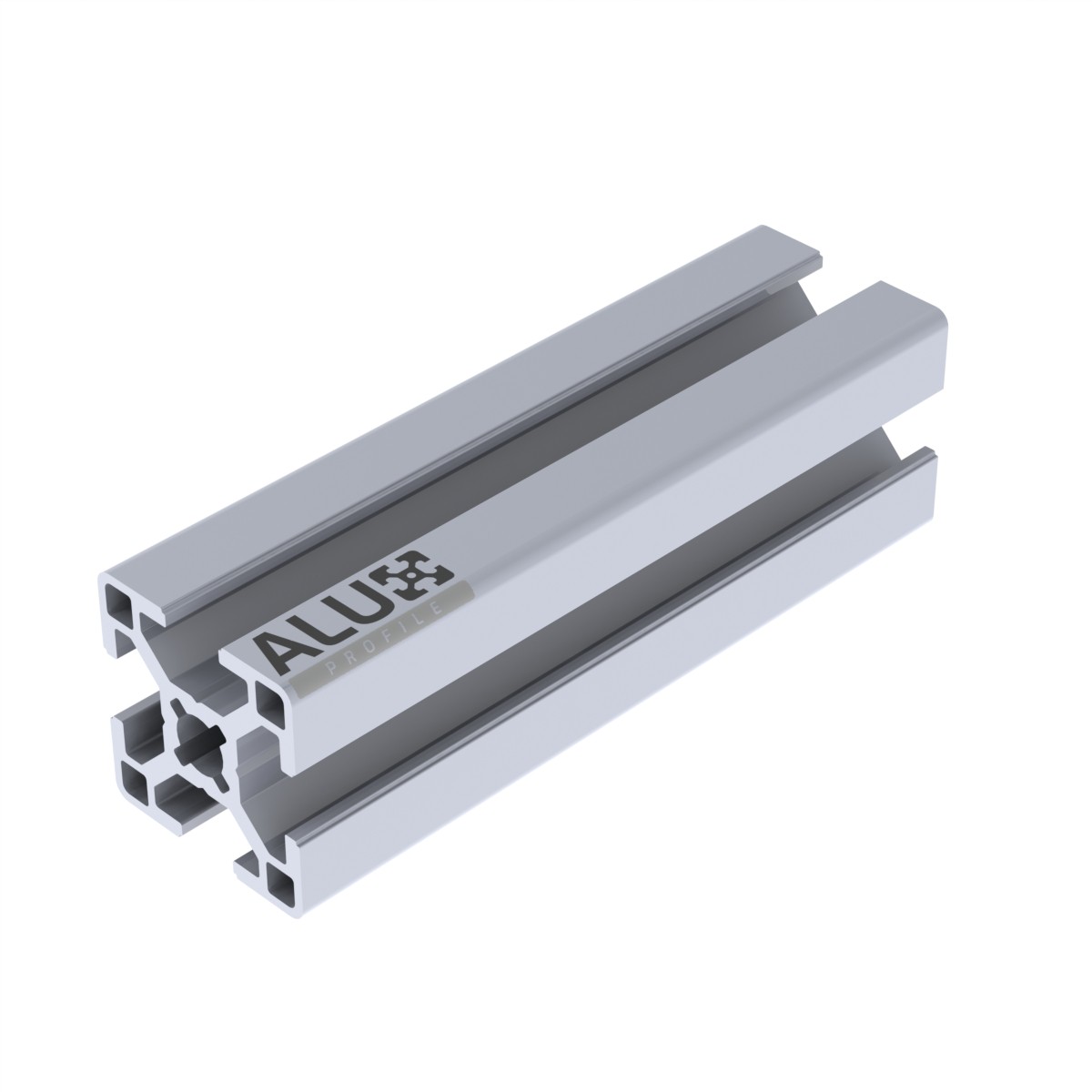

This Alux aluminium slot profile 30x30 is 30 mm wide and 30 mm high. The aluminium profile has 4 slots, 8 mm wide. The depth of the T slot is 9 mm. On both ends of the profile there is a 6,8 mm hole for cutting M8 threads. The aluminium profiles are anodised in a silver-grey aluminium color.

The aluminium 20-profile and 30-profile series that you can find on the Aluxprofile website are compatible with BSB, BSP, B-Type, BOSCH aluminium construction profiles.

Aluminium profile system

 Bosch, BSP, BSB, B-Type

Aluminium profile slot

 8mm

Aluminium profile range

 30mm

Aluminium profile size

 30x30 mm

Slot size

 8mm -0/+0,3mm

Aluminium profile core

 6.8mm -0.2/+0mm

Aluminium profile cut

 Length -1/+1mm

Material
Aluminium
Color
Silvergrey
Version
Anodized
Profile series
30
T-slot
8mm - 30 series
3661_20181205153004_3030x100 CAD.zip

Aluminium profile surface

Anodized surface finish

 E6EV1 (Matte Silver) 10-15 µm

Aluminium profile certification

Material specification certificate

 3.1 available on request

Mechanical properties

Material specification

 EN-AW 6063

Annealing

 T66

Yield

 Rp0.2>=200 [N/ mm2]

Tensile strength

 Rm>=245 [N/ mm2]

Creep (deformation)

 A >= 8 [%]

Creep (deformation)

 A5 0mm>= 6 [%]

Hardness

 >= 80 [HB]

Technical specification

Cross-sectional area

 311,00 [mm2]

Center of mass X

 15,00 [mm]

Center of mass Y

 15,00 [mm]

Second moment of area

 Ix  26803,90 [mm4]

Second moment of area

 IY 26803,90 [mm4]

Section modulus

 Wx 1787,00 [mm3]

Section modulus

 Wy 1787,00 [mm3]

Nominal weight

 0.843 [kg/m]
