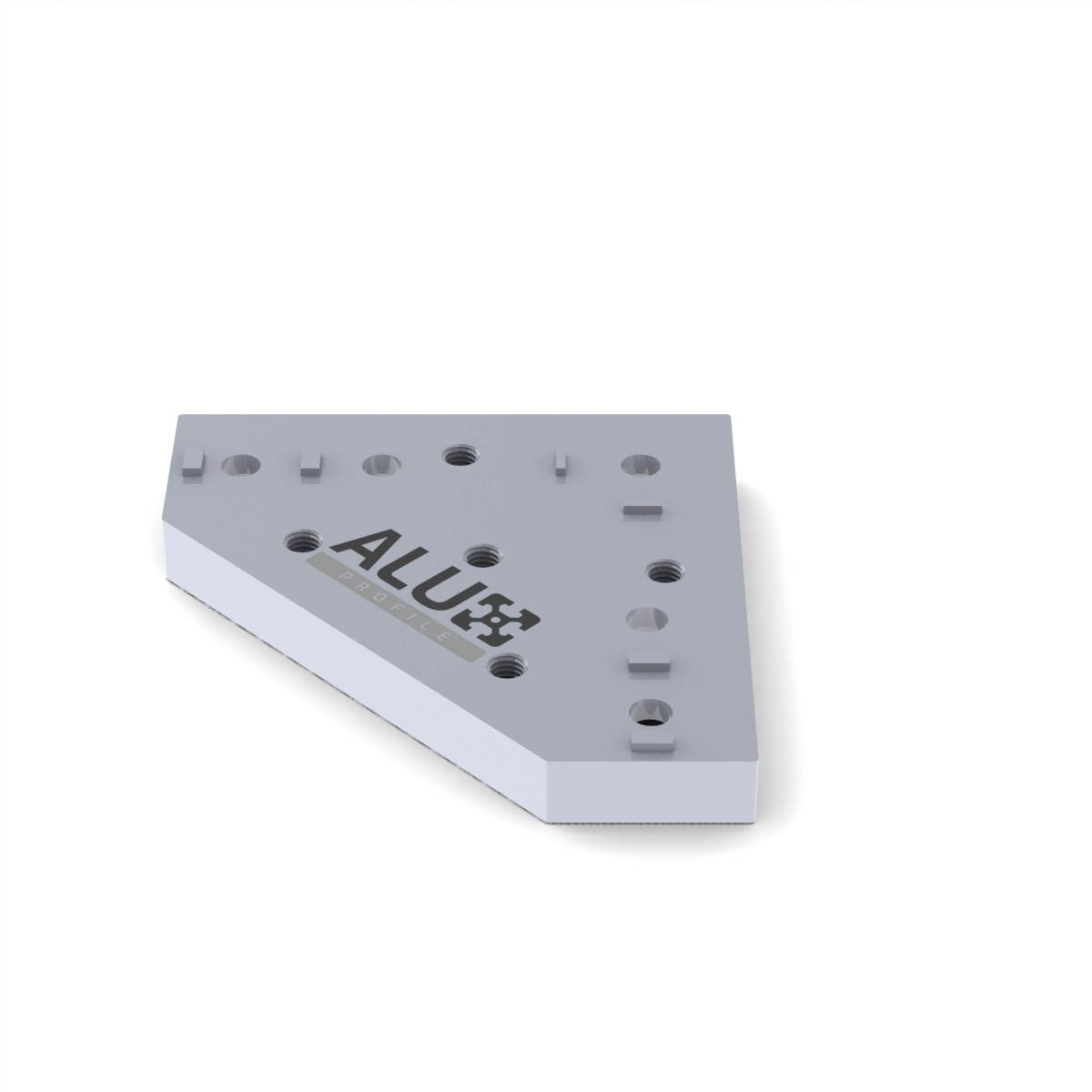

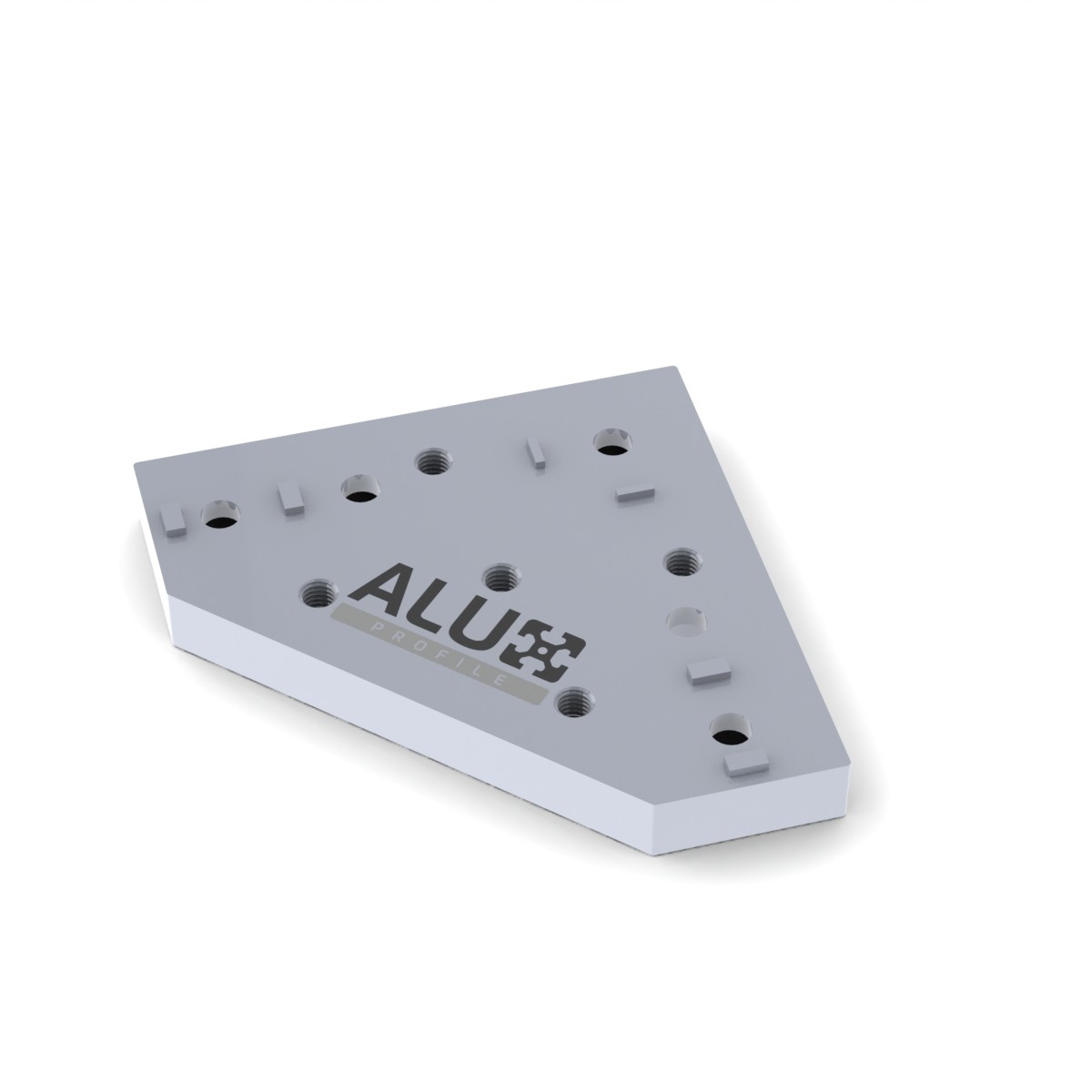

Transport and Base Plate 120x120 M8 for T-Slot Aluminium Profiles

• Heavy-Duty Use: Designed for demanding industrial and structural applications, providing a robust and stable base for machinery, equipment, and large assemblies.
• Accessory Mounting: Equipped with 5 M8 threaded holes, allowing for the direct mounting of leveling feet, rollers, hooks, casters, or other heavy-duty accessories.

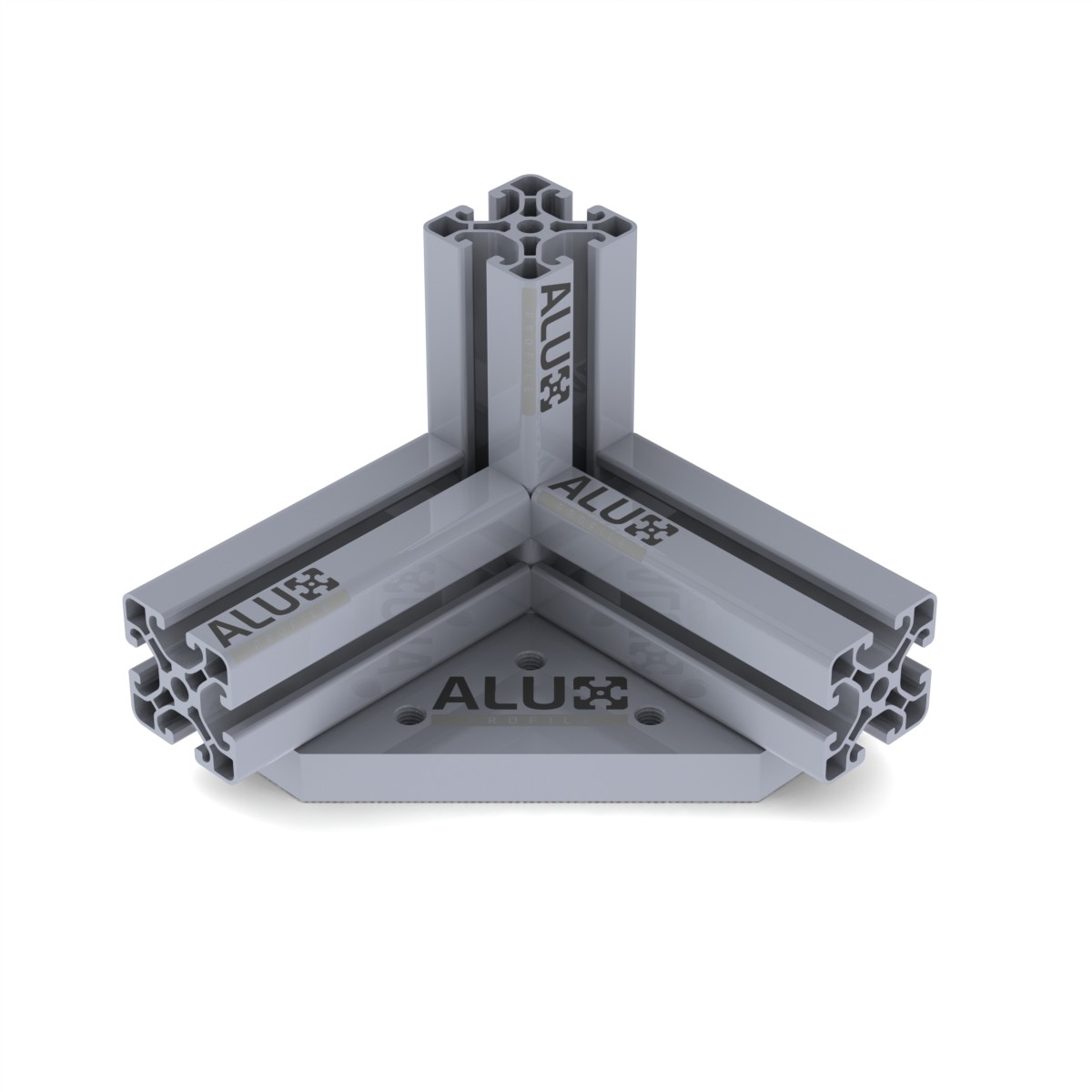

• Profile Connection: Engineered with dedicated holes to connect up to three 40x40 mm T-slot aluminium profiles, or alternatively two 40x80 mm profiles and one 40x40 mm profile in a standing orientation—enabling the assembly of strong, multi-directional frames and structures.
• Material & Finish: Manufactured from high-quality die-cast aluminium with a durable, corrosion-resistant finish for reliable performance in harsh environments.
• Mounting: Secures directly to the ends of 40x40 or 40x80 aluminium profiles using M8 bolts, ensuring a stable and secure connection for heavy-duty assemblies.
• Compatibility: Designed for seamless integration with standard 40x40 mm and 40x80 mm T-slot aluminium extrusion profiles, commonly used in industrial frameworks and automation.

Benefits:

• Provides a solid foundation for heavy machinery and equipment.
• Enables the assembly of complex, multi-profile structures in various configurations.
• Quick and easy installation—no special tools required.
• Multiple threaded holes support a wide range of accessories.

Technical Details:

• Plate Dimensions: 120 mm x 120 mm
• Threaded Holes: 5 x M8
• Profile Connection: For up to 3 x 40x40 profiles or 2 x 40x80 + 1 x 40x40 (standing) (M8 bolts)
• Material: Die-cast aluminium
• Finish: Durable, corrosion-resistant

• Note: Compatible accessories and mounting hardware are available separately.
