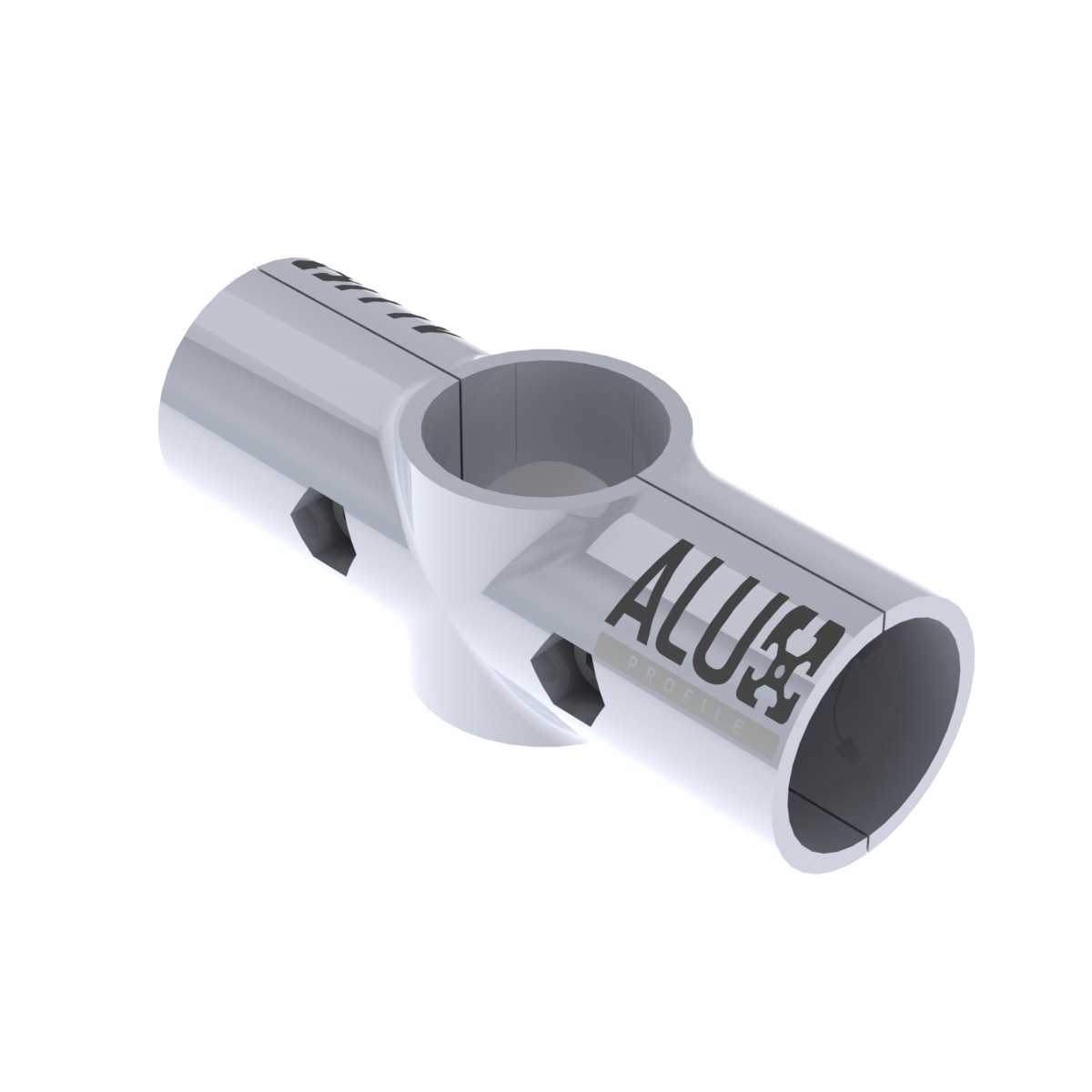

Ø28 mm T-connector for aluminium tubes – connector for the Leanpipe system

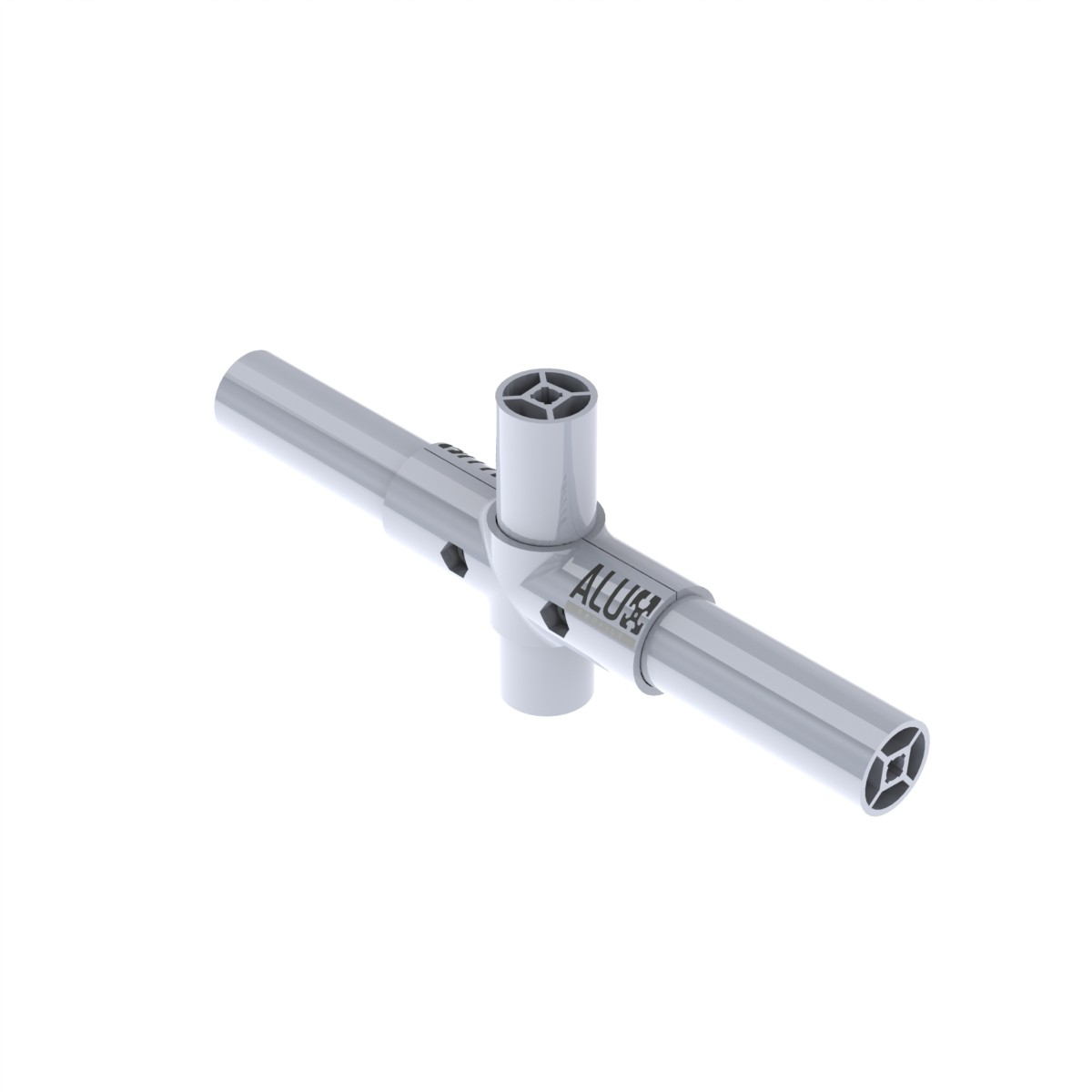

The Ø28 mm T-connector is designed for joining aluminium tubes and round profiles with an external diameter of 28 mm in modular tube structures. Depending on the arrangement of the components, it enables connections in a T, X or I configuration, allowing through-running and transverse sections of the structure to be joined.

Each tube is inserted 23 mm deep into the corresponding socket of the connector. This allows the connected components to be positioned accurately and a structure based on the 28 mm Leanpipe tube system to be assembled.

The connector is compatible with Ø28 mm round aluminium profiles in silver or black. The 28 mm tube system is suitable for constructing material racks, transport trolleys, workstations and structures used together with roller conveyors.

The product is supplied complete with mounting hardware, making it ready for installation and use in the structure.
