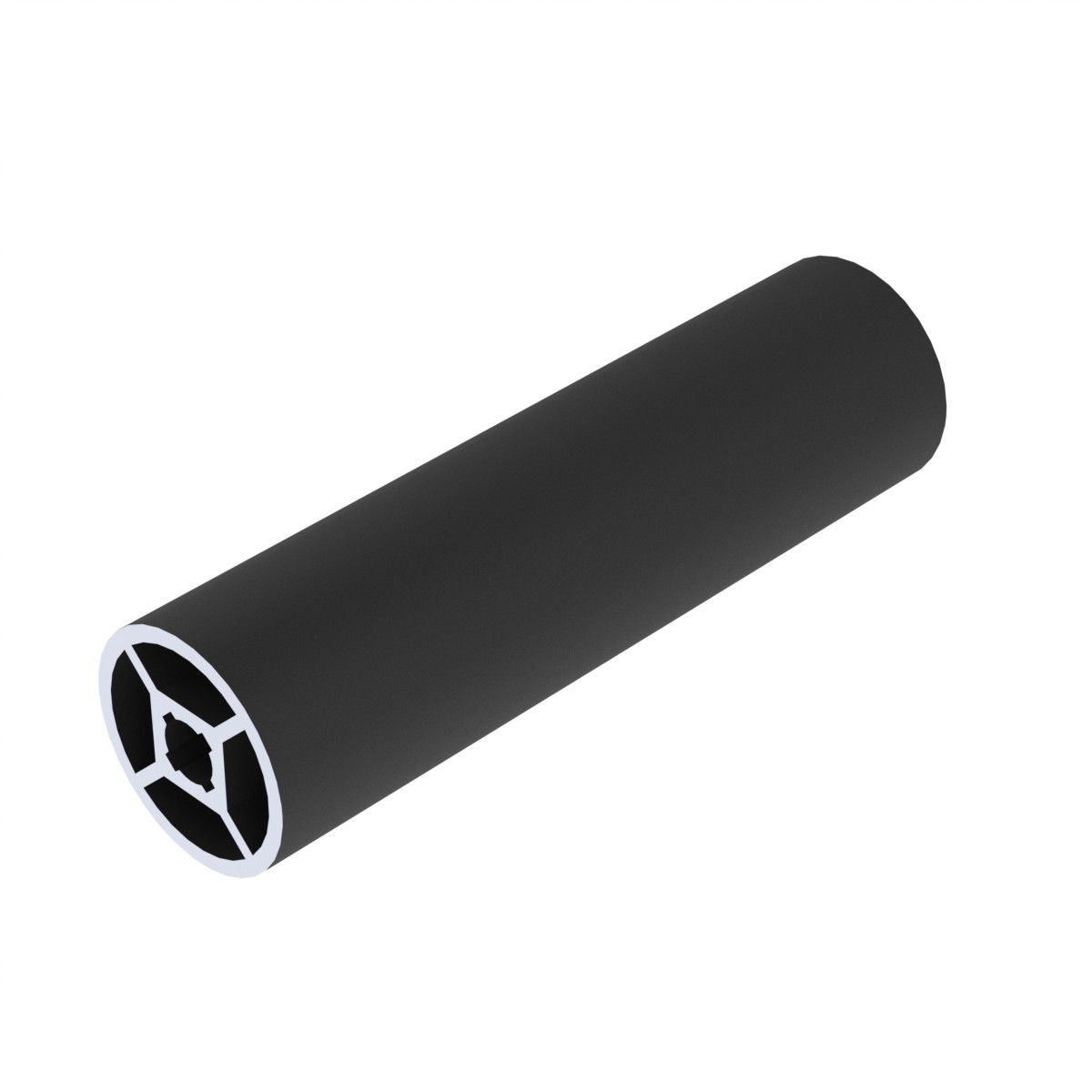

Aluminium pipe profile 28mm black
Configure your product
The 28mm aluminium pipe profile has a 7.3mm core for cutting an M8 thread. The aluminium pipes are anodised in a black color. The 28mm pipe system is ideally suited for combining roller tracks with the T-slot aluminium profile system. Furthermore, entire frames, material carts or other project scan be constructed from either just the 28mm pipe frame system or a combination of the 2 systems.
Specificaties
Attachments
 |
Detailed technical information
|
Aluminium profile surface |
|
|
Anodized surface finish |
E6C35 (black) 10-15 µm |
|
Aluminium profile certification |
|
|
Material specification certificate |
3.1 available on request |
|
Mechanical properties |
|
|
Material specification |
EN-AW 6063 |
|
Annealing |
T66 |
|
Yield |
Rp0.2>=200 [N/ mm2] |
|
Tensile strength |
Rm>=245 [N/ mm2] |
|
Creep (deformation) |
A >= 8 [%] |
|
Creep (deformation) |
A5 0mm>= 6 [%] |
|
Hardness |
>= 80 [HB] |
|
Technical specification |
|
|
Cross-sectional area |
267,40 [mm2] |
|
Center of mass X |
14,00 [mm] |
|
Center of mass Y |
14,00 [mm] |
|
Second moment of area |
Ix 16168,00 [mm4] |
|
Second moment of area |
IY 16168,00 [mm4] |
|
Section modulus |
Wx 1156,20 [mm3] |
|
Section modulus |
Wy 1156,20 [mm3] |
|
Nominal weight |
0,725 [kg/m] |
