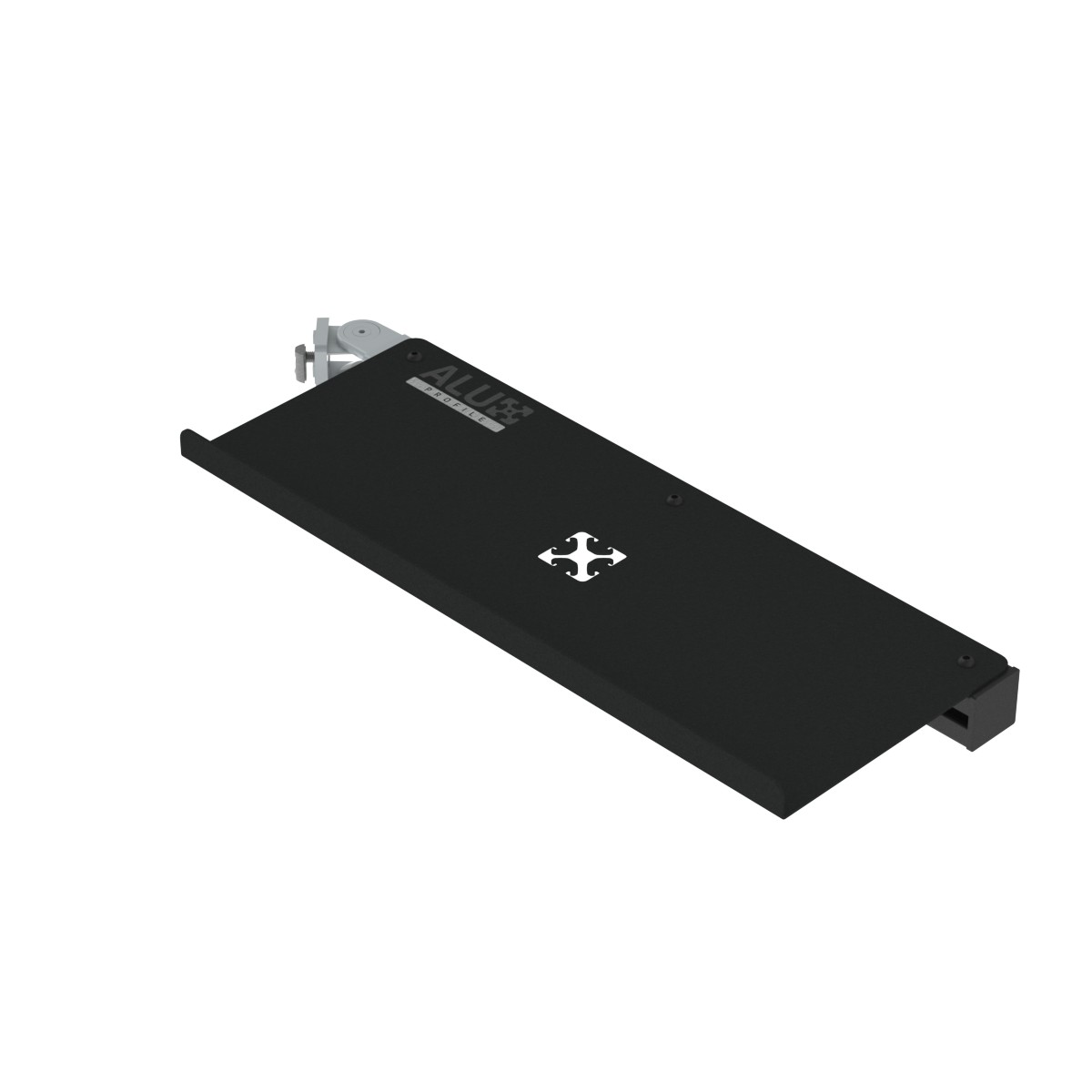

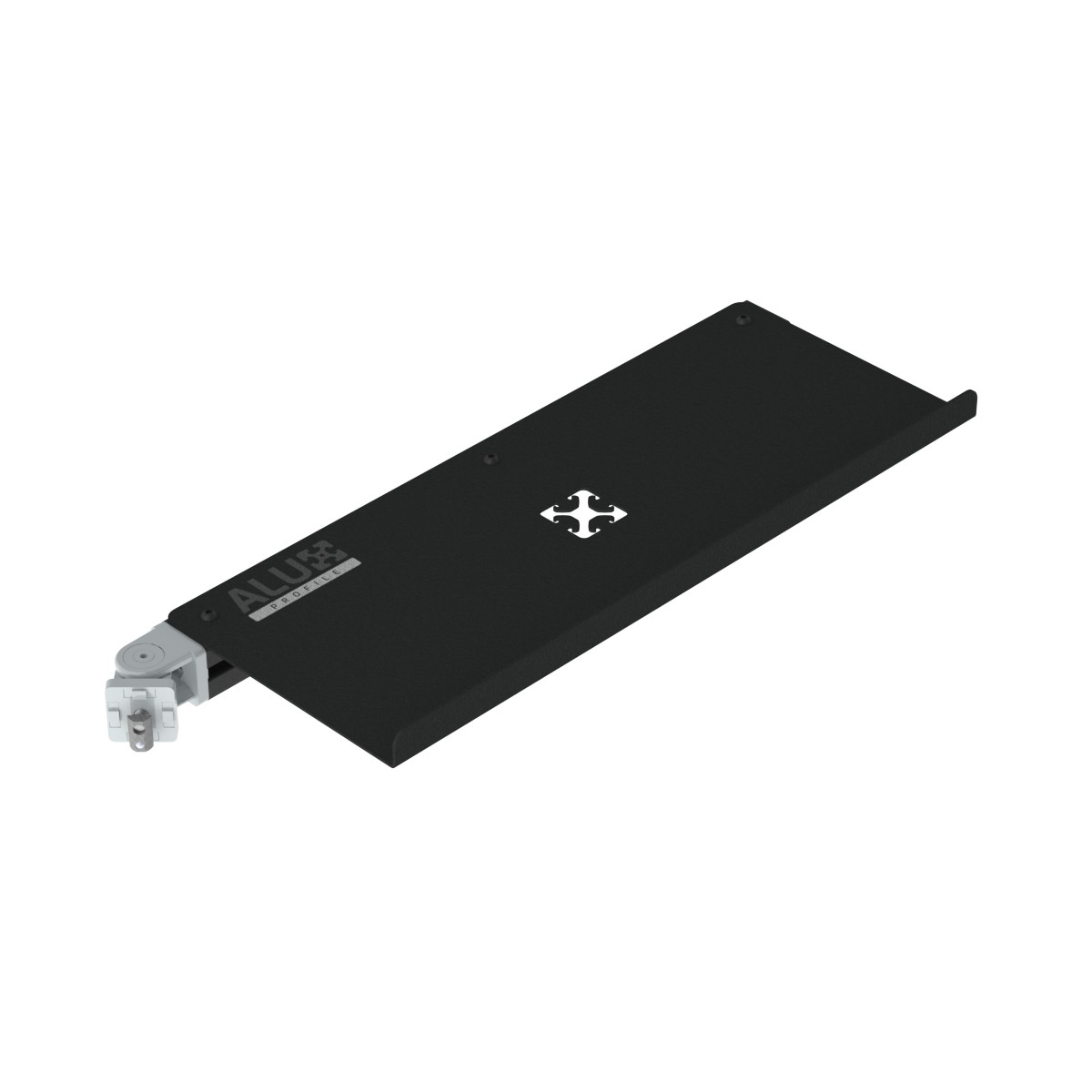

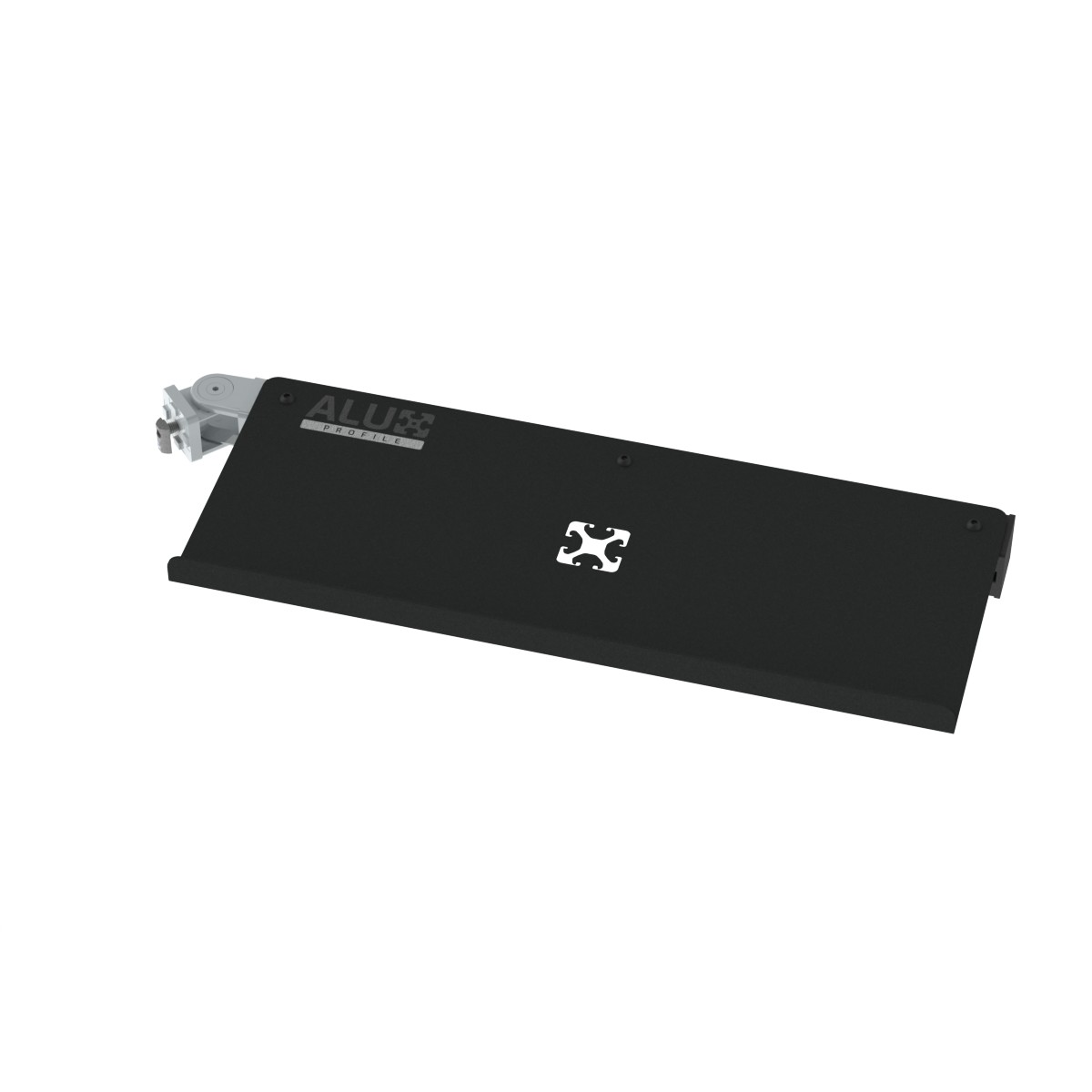

Keyboard plate set (500x200) – adjustable swivel mount for 40-series aluminium profiles (RAL 9005)

The Keyboard plate set is a complete, ready-to-mount solution for adding an adjustable keyboard surface to your build. It is based on the 500x200 mm keyboard plate made from 2 mm S235 steel and finished with a durable powder coating in RAL 9005 (black). The plate features the Alux X in the center as a design element.

This set includes the required hardware and a 40x40 aluminium profile, allowing you to mount it directly to a sim racing rig or other 40-series profile constructions.

Adjustable: swivel and rotate

Thanks to the adjustable mounting, the keyboard plate can swivel and rotate, so you can position it exactly where you want it. This makes it ideal for shared rigs/workstations or for users who want to fine-tune ergonomics.

Compatible profile systems

Designed for 40-series aluminium T-slot profiles compatible with ITEM, ISB, ISP and I‑Type.

Key features

• Complete set: keyboard plate + hardware + 40x40 aluminium profile

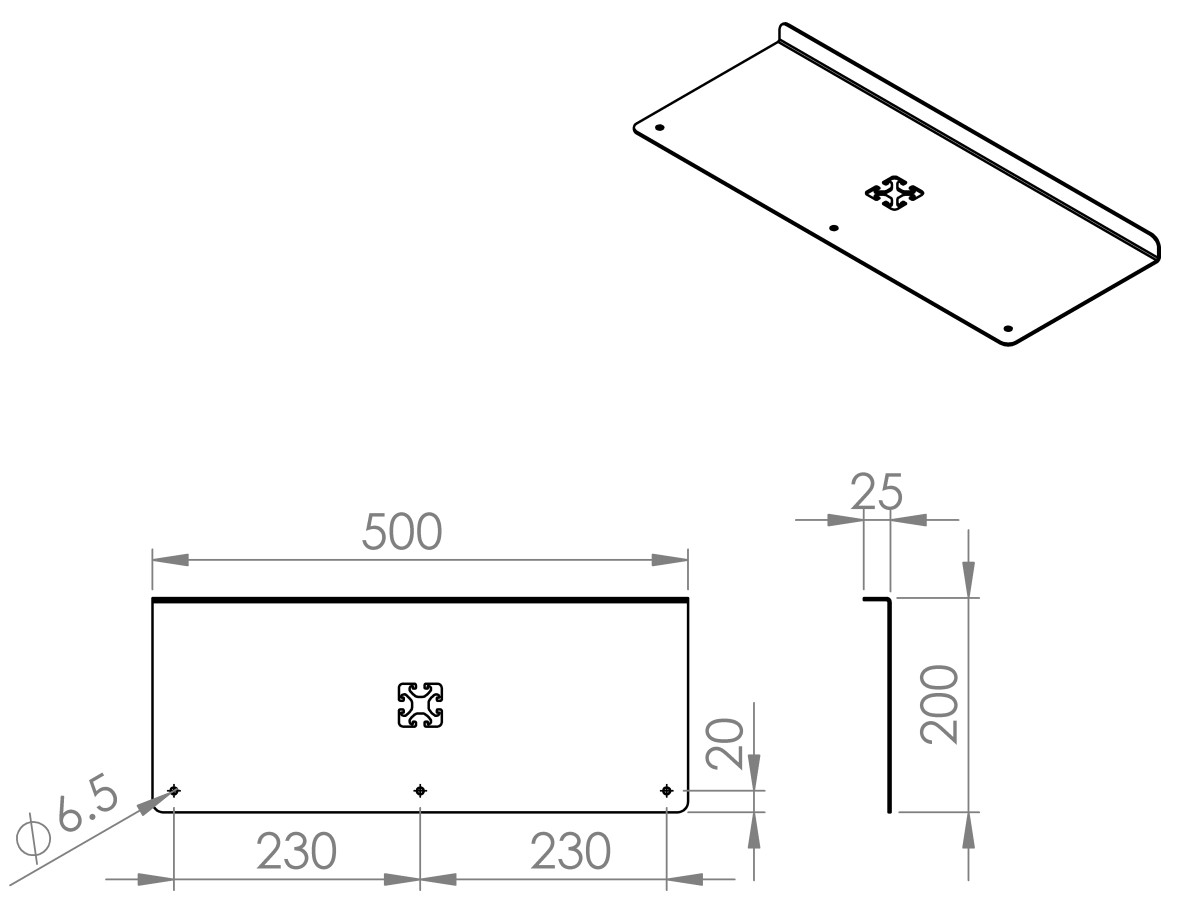

• Plate size: 500 x 200 mm
• Material: 2 mm S235 steel
• Finish: powder coated, RAL 9005 black
• Mounting: 3 holes for M6 screws
• Adjustable: swivels and rotates for ergonomic positioning
• Design detail: Alux X element in the center

Typical applications

• Sim racing rigs (adjustable keyboard tray)
• Operator workstations and production cells
• Packing stations and order processing benches
• Test benches and R&D setups
• Mobile carts with keyboard/PC input
