Hexagon socket countersunk head screws ISO 10642 M4x8 black
Back in stock soon!
Oops, this product is currently out of stock! Leave us your email, and we’ll let you know as soon as it’s available again. Don’t miss out – be the first in line! 🚀✨
More information can be found here.

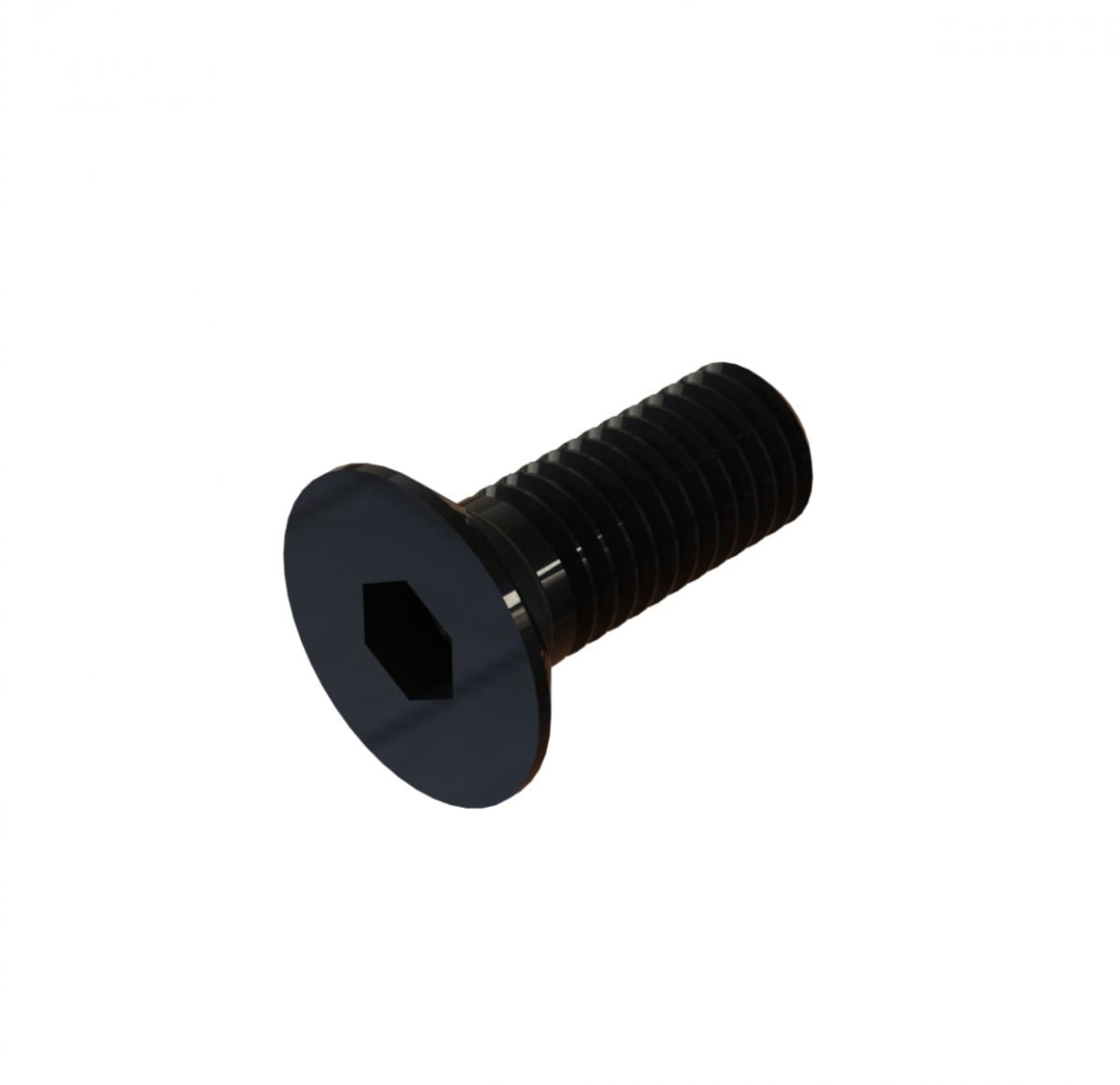

Hexagon Socket Countersunk Head Screw M4×8 – ISO 10642
The M4×8 hexagon socket countersunk head screw to ISO 10642 (commonly referenced as DIN 7991) is designed for assemblies where a flush, snag-free surface matters. Thanks to its countersunk head, the screw sits neatly in a matching countersink, making it ideal for panels, covers, sliding parts, and clean-looking aluminium profile constructions. Manufactured from high-strength steel (property class 10.9) and zinc-plated for corrosion protection, it delivers reliable clamping force in compact builds.
Why choose a countersunk head?
- Flush finish: the head can sit level with the surface for a clean, professional look
- No protruding head: reduces the risk of catching on cables, clothing, or moving components
- Space-saving: useful where clearance is limited (covers, guards, tight frames)
Typical applications
- Machine covers, panels, and guards
- Aluminium profile constructions where a flat outer surface is required
- Automation, fixtures, and compact mechanical assemblies
- Projects where parts slide over or touch the fastened surface
Key specifications
- Size: M4 × 8 mm (metric thread; length measured overall for countersunk screws)
- Drive: Hex socket (for 2.5 mm Allen key)
- Material: steel, property class 10.9
- Standard: ISO 10642 / DIN 7991
Dimensions (ISO 10642) – M4×8 (per drawing)
- l: 10 mm
- dk max: 8.96 mm
- dk min: 7.53 mm
- k max: 2.48 mm
- s (nom): 2.5 mm
Use with our aluminium T-slot profile connectors
Countersunk screws are especially useful in aluminium profile builds when you want a smooth outside surface—for example on panels, brackets, or plates mounted to a frame. Combine this M4 screw with our profile accessories such as:
- T-nuts / sliding nuts / hammer nuts (depending on your slot system) for fastening into the profile groove
- Plates and flat connectors where a flush head improves clearance and appearance
- Brackets and mounting plates for neat, low-profile assemblies
Quality & availability
We supply high-quality fasteners and aluminium profile accessories and keep a large stock available—so we can support both small DIY orders and large B2B projects with fast, reliable delivery from inventory.
