Corner bracket 6060

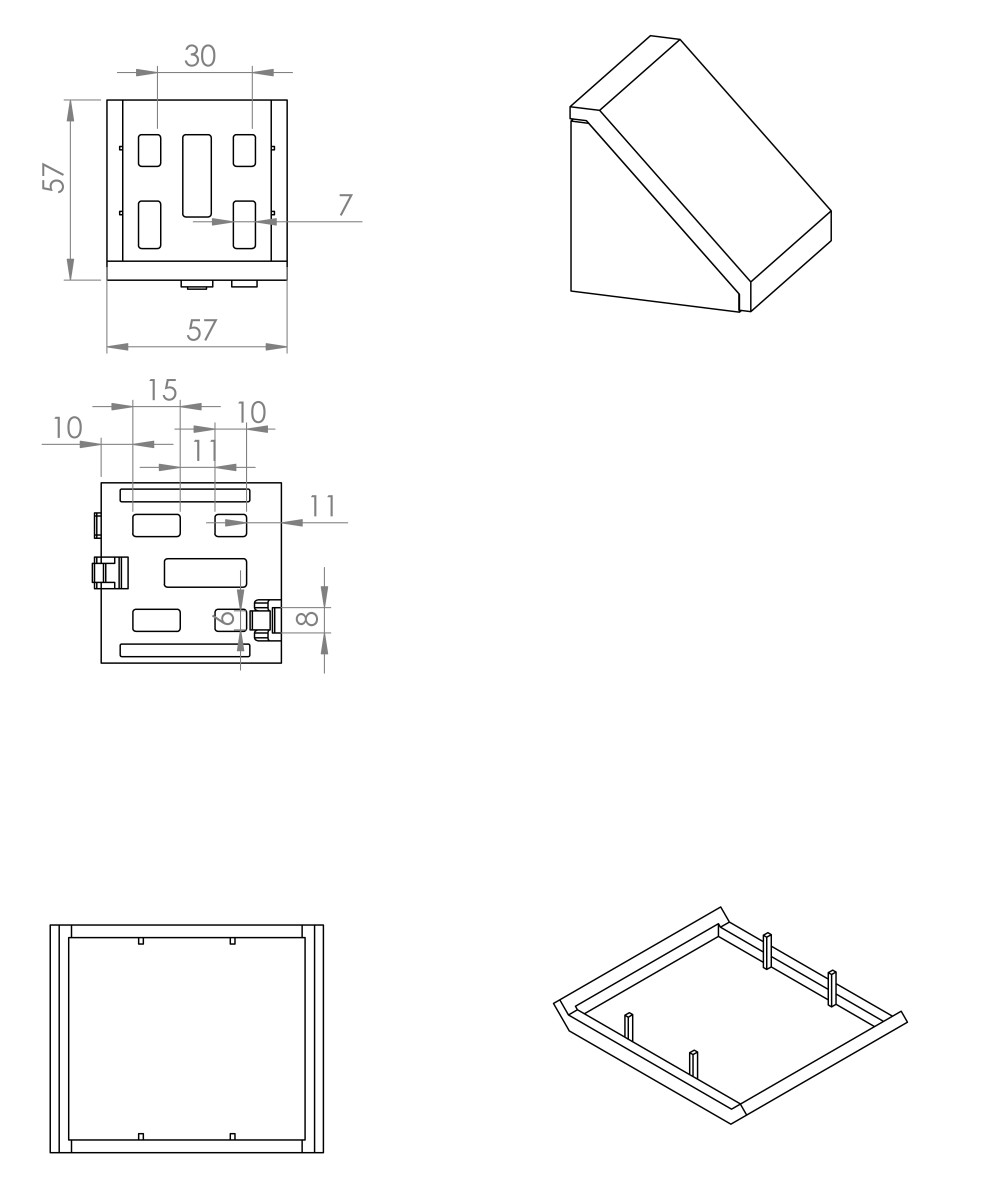

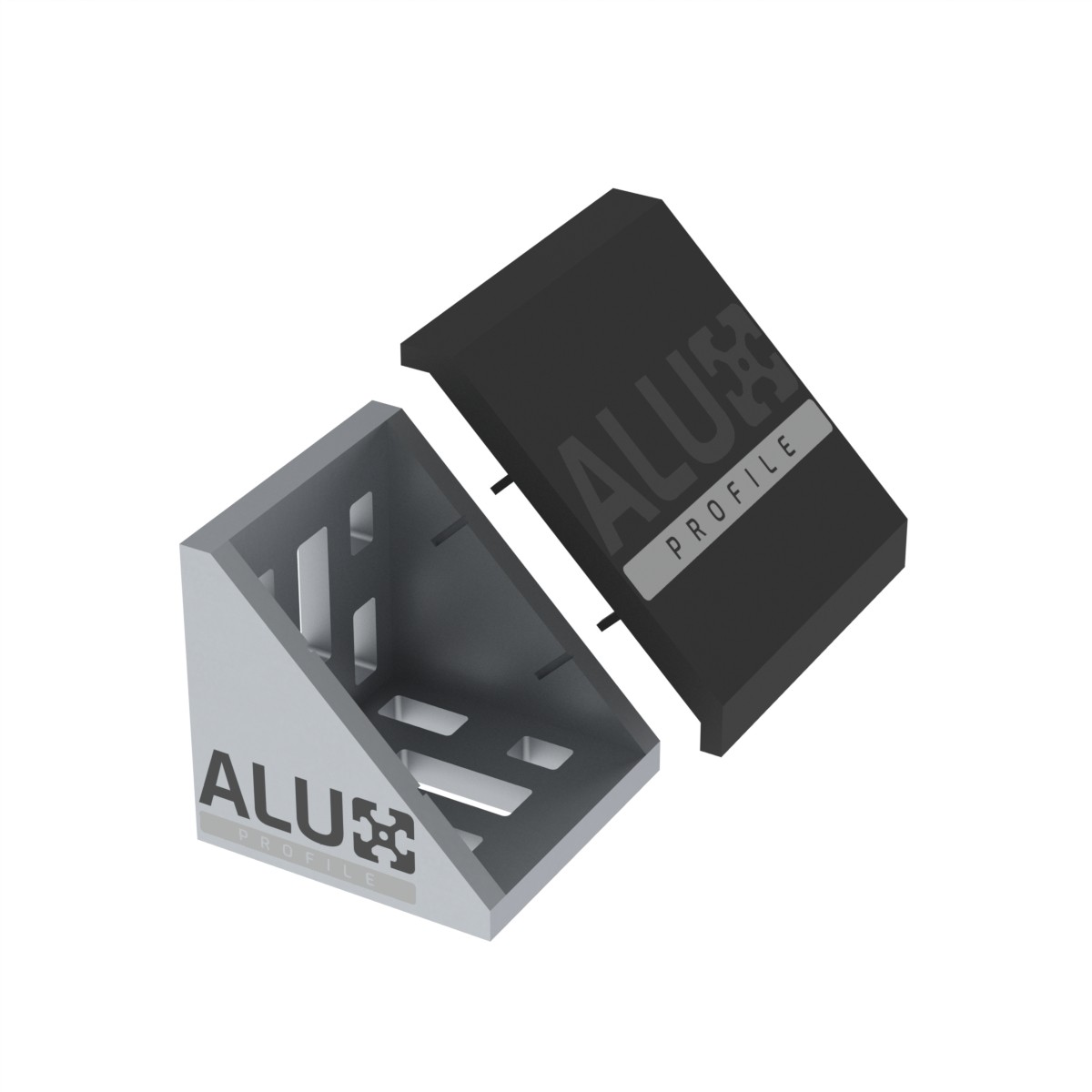

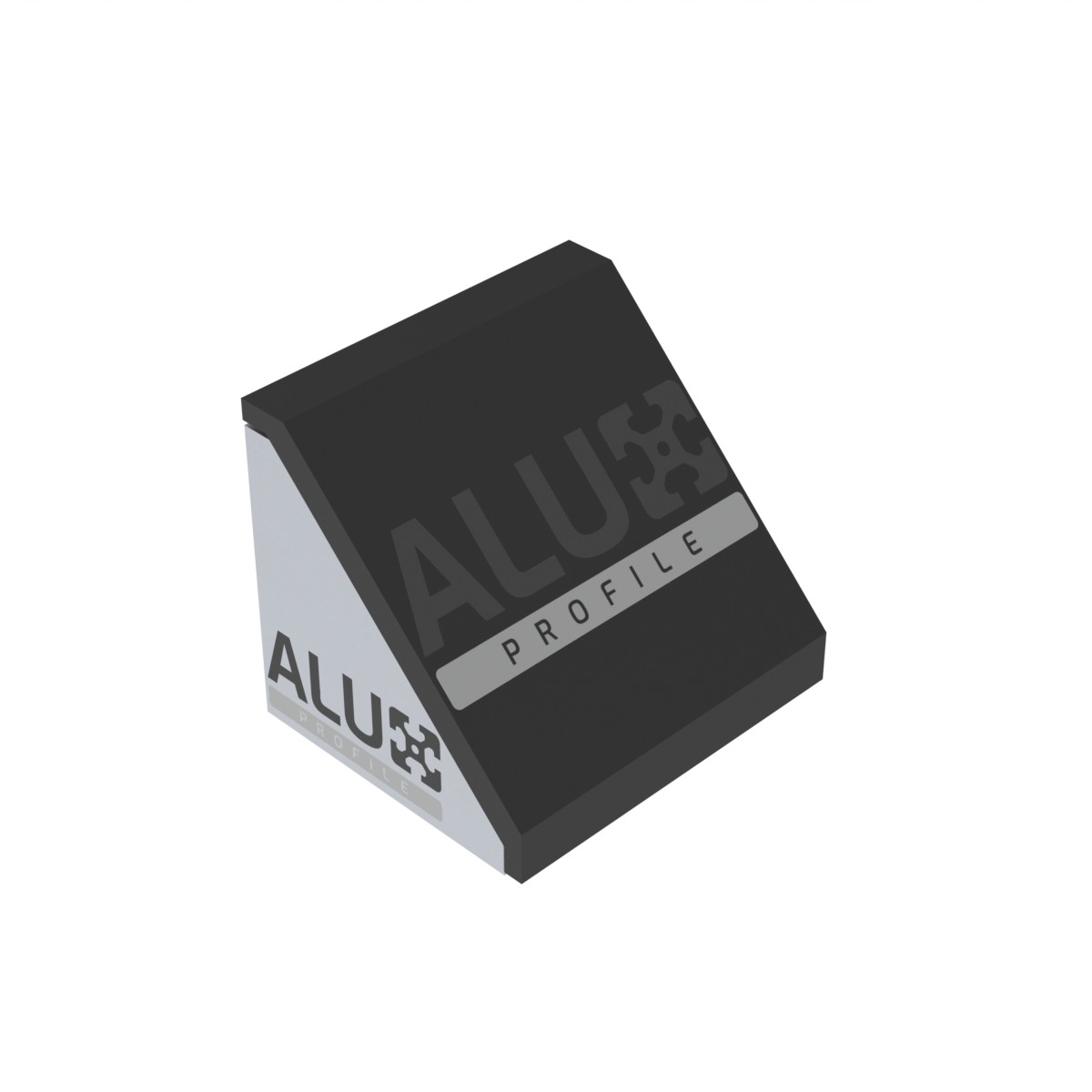

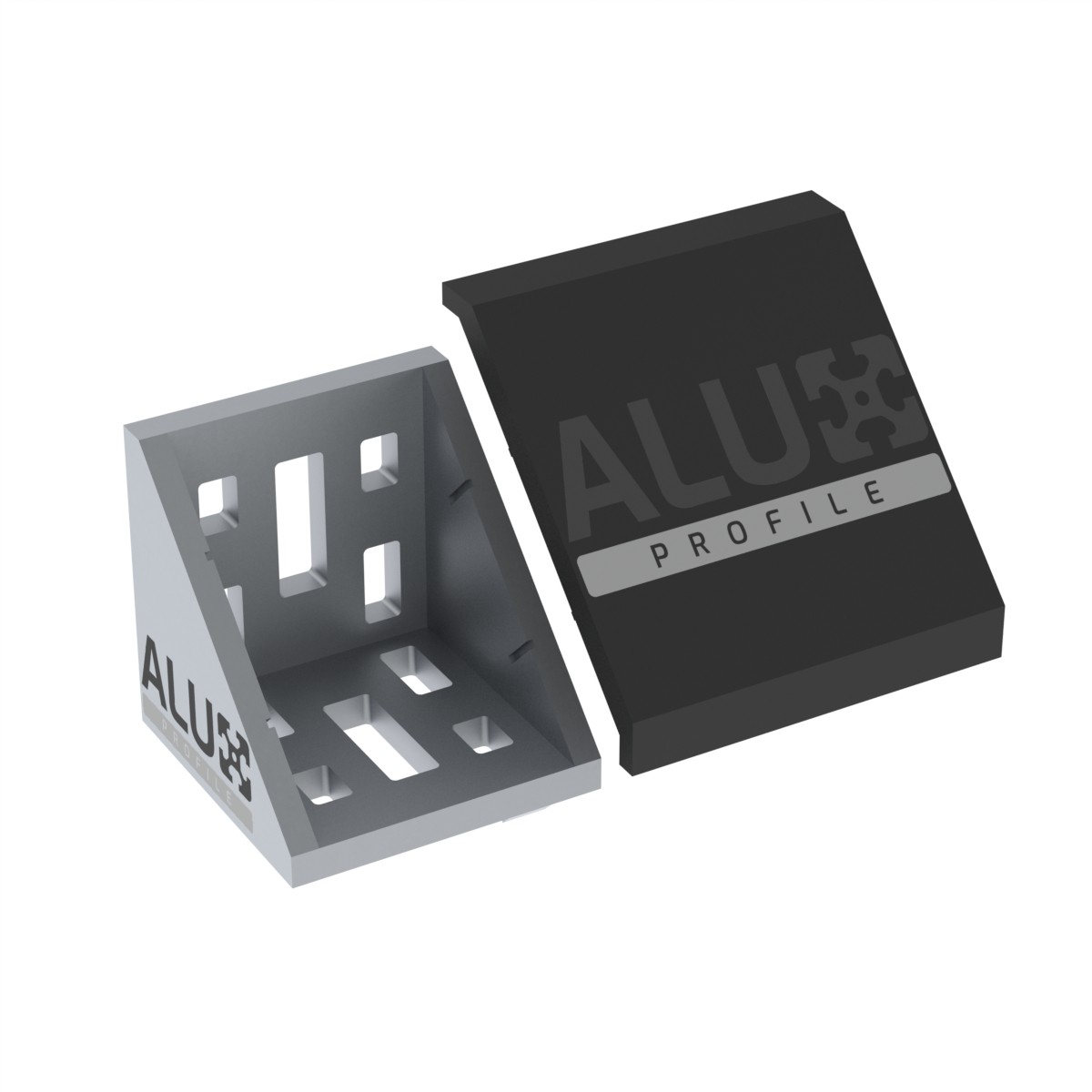

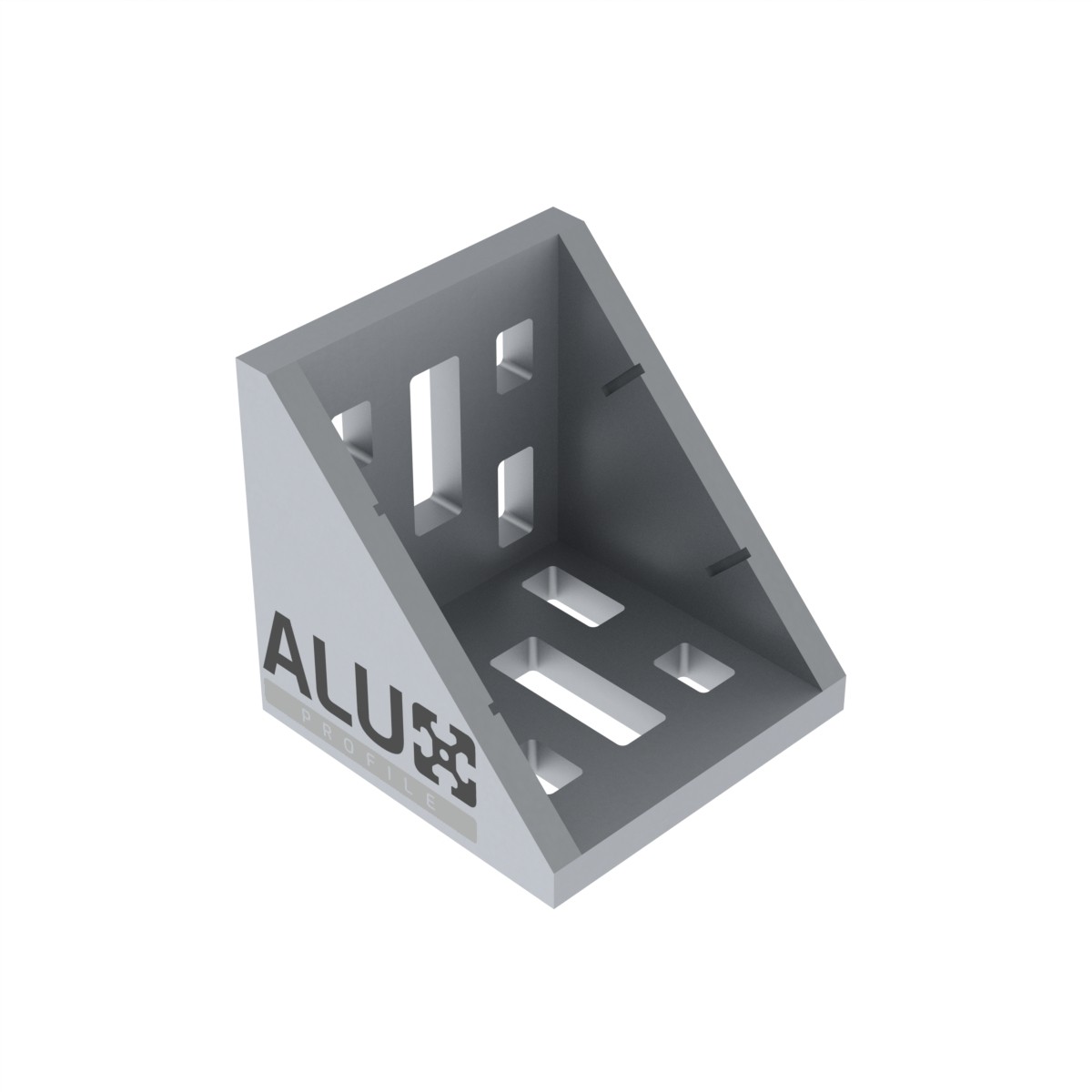

Corner bracket 6060. This cast aluminium corner bracket is 57mm wide and 57mm high. The bracket can be ordered with matching cover cap. The centering legs on the corner bracket are 6mm and 8mm wide, which makes this bracket suitable for use with 6mm and 8mm T-slot profiles. The centering legs can be easily broken off using a flat-blade screwdriver, resluting in a flat area on the corner bracket for easy mounting to plates or mounting perpendicular to the T-slot.

Look under the tab "connection kit" to find the correct fasteners to use with this connector.
