Aluminium slot profile 6060 black
Configure your product

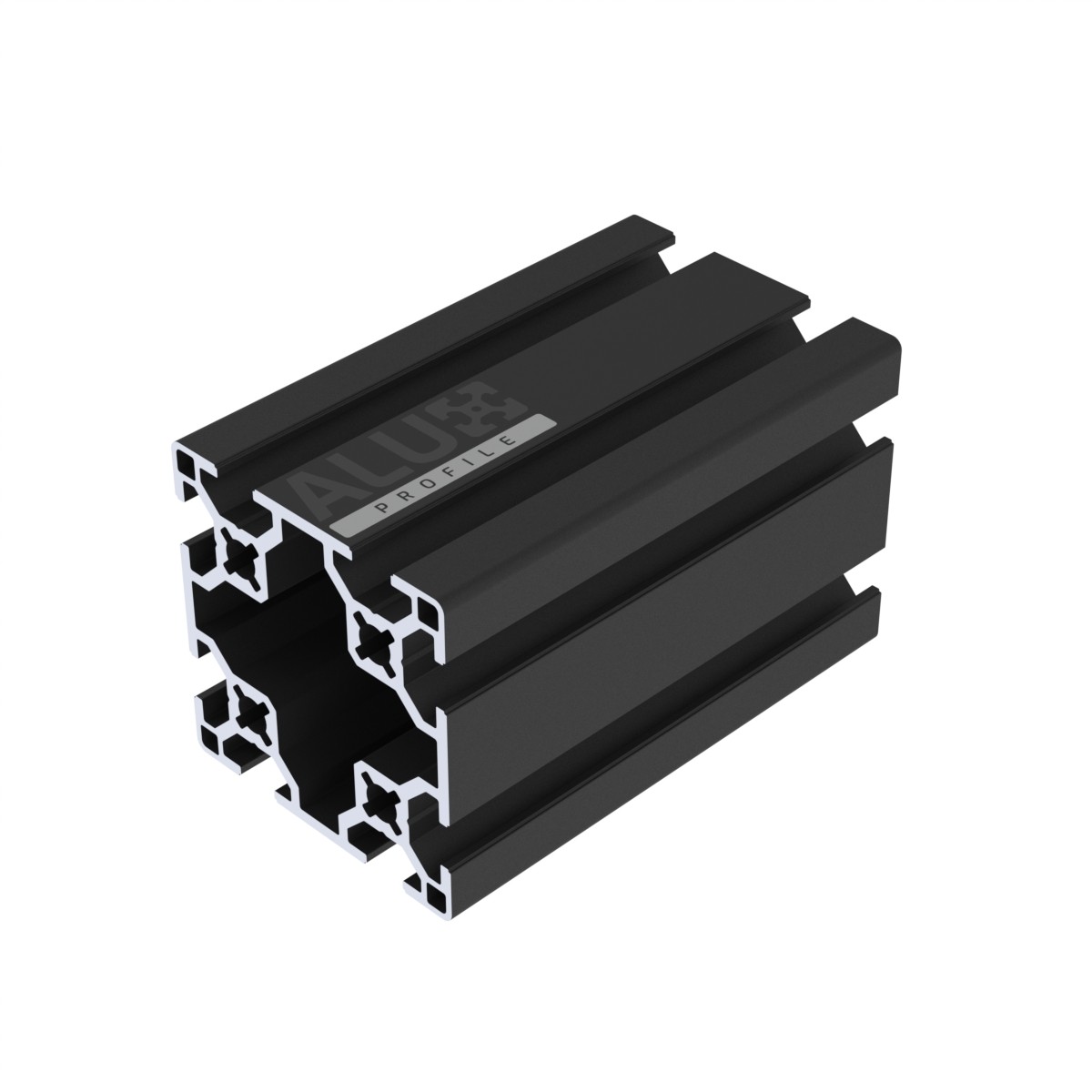

Alux Aluminium Slot Profile 6060 (8 mm T-slot, 8 slots) – Black anodized for premium visible builds
The black anodized 60×60 profile combines heavy-duty stiffness with refined aesthetics—ideal for visible frames, automation cells and modular machinery.
Highlights:
- Dimensions: 60 × 60 mm
- Slots: 8 × 8 mm T-slots – versatile mounting on every side
- Finish: Black anodized – color-stable, scratch- and corrosion-resistant
- Assembly: Compatible with T-nuts, brackets, hinges, leveling feet
- Custom lengths: −1/+1 mm
System Compatibility:
- Compatible with BSB, BSP, B-Type, BOSCH profile systems
- Browse compatible profiles

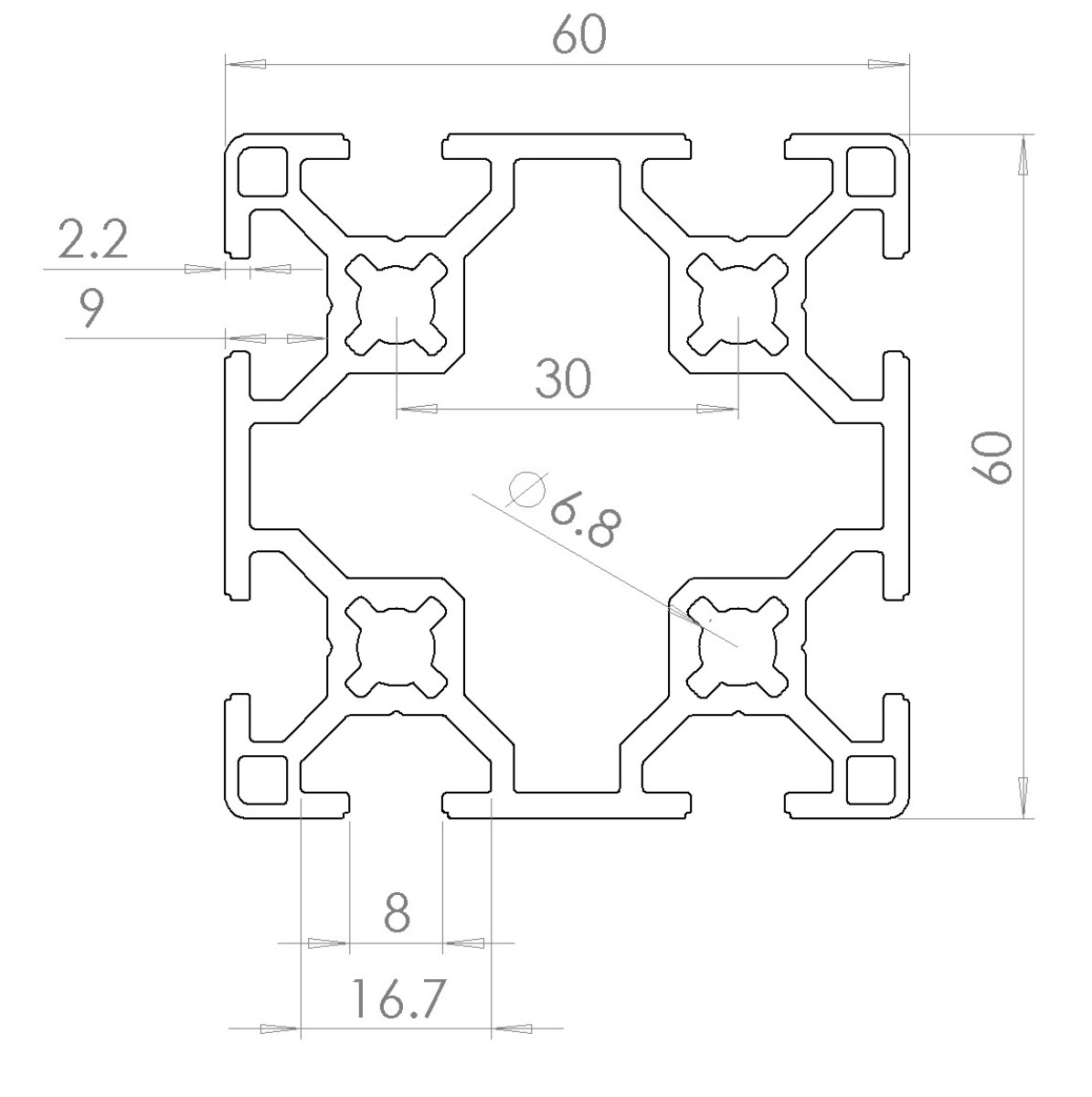

Technical Data:
- Series: 60
- Slot size: 8 mm
- Number of slots: 8
- Profile size: 60 × 60 mm
- Finish: Black anodized
Applications:
- Premium visible structures: AV rigs, camera bridges, monitor/projector frames
- Automation & machinery: Heavy frames, cobot cells, safety guarding
- Workstations & ESD: Ergonomic stations, ESD benches, tool boards
- Retail & exhibition: Displays, showcases, modular booths, signage
- 3D printing & CNC: Enclosures, gantry frames, low-vibration bases
- Robotics & vision: Sensor/camera frames, robot bases
- Conveyors & intralogistics: Roller/belt lines, sorting, check-weigh
- AGV/AMR superstructures: Protective frames, decks and fixtures
- Laboratory & cleanroom: Cleanroom carts, partitions, instrument stands
- Facility & acoustics: Sound-damped/dust-tight enclosures
Order your 60×60 black anodized profile
Contact us for custom sizes, volume orders or expert advice.
|
Aluminium profile system |
BOSCH, BSB, BSP, B-Type |
|
Aluminium profile slot |
8mm |
|
Aluminium profile range |
30mm |
|
Aluminium profile size |
60x60 mm |
|
Slot size |
8mm -0/+0,3mm |
|
Aluminium profile core |
6,8mm -0,2/+0,2mm |
|
Aluminium profile cut |
Length -1/+1mm |
Specificaties
Attachments
 |
6060.step 3D |
Detailed technical information
|
Aluminium profile surface |
|
|
Anodized surface finish |
E6C35 (Black) 10-15 µm |
|
Aluminium profile certification |
|
|
Material specification certificate |
3.1 available on request |
|
Mechanical properties |
|
|
Material specification |
EN-AW 6063 |
|
Annealing |
T66 |
|
Yield |
Rp0.2>=200 [N/ mm2] |
|
Tensile strength |
Rm>=245 [N/ mm2] |
|
Creep (deformation) |
A >= 8 [%] |
|
Creep (deformation) |
A5 0mm>= 6 [%] |
|
Hardness |
>= 80 [HB] |
|
Technical specification |
|
|
Cross-sectional area |
952,10 [mm2] |
|
Center of mass X |
30 [mm] |
|
Center of mass Y |
30 [mm] |
|
Second moment of area |
Ix 370420,00 [mm4] |
|
Second moment of area |
IY 370420,00 [mm4] |
|
Section modulus |
Wx 12347,30 [mm3] |
|
Section modulus |
Wy 12347,30 [mm3] |
|
Nominal weight |
2,58 [kg/m] |
Deflection calculator
Aluminium Profile Deflection Calculator
This tool provides approximate, theoretical results that are not guaranteed or replicable in practice.
Aluminium profile configurations
Simply supported profiles
Cantilever profiles
Both ends fixed profiles
