Aluminium corner 4040L M6

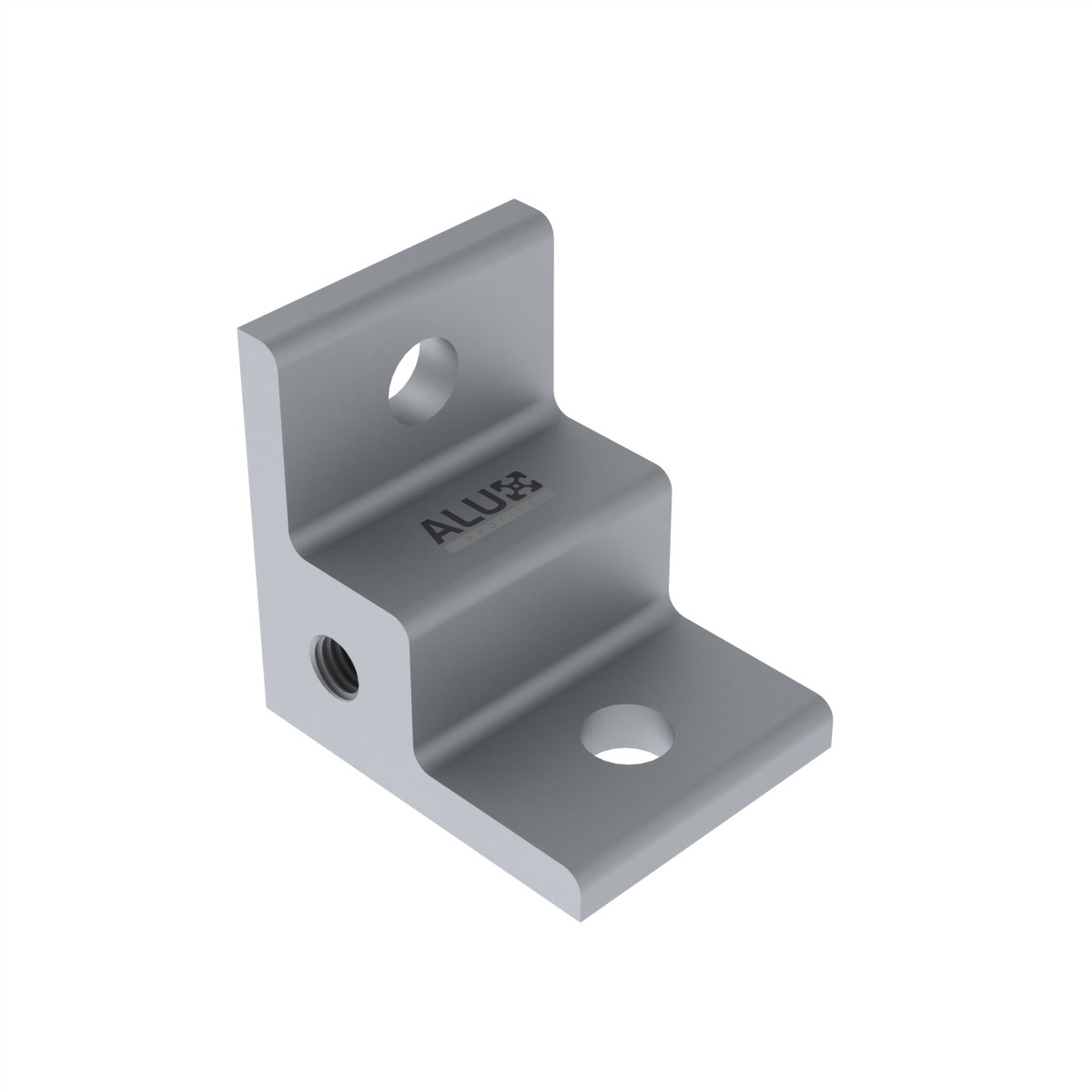

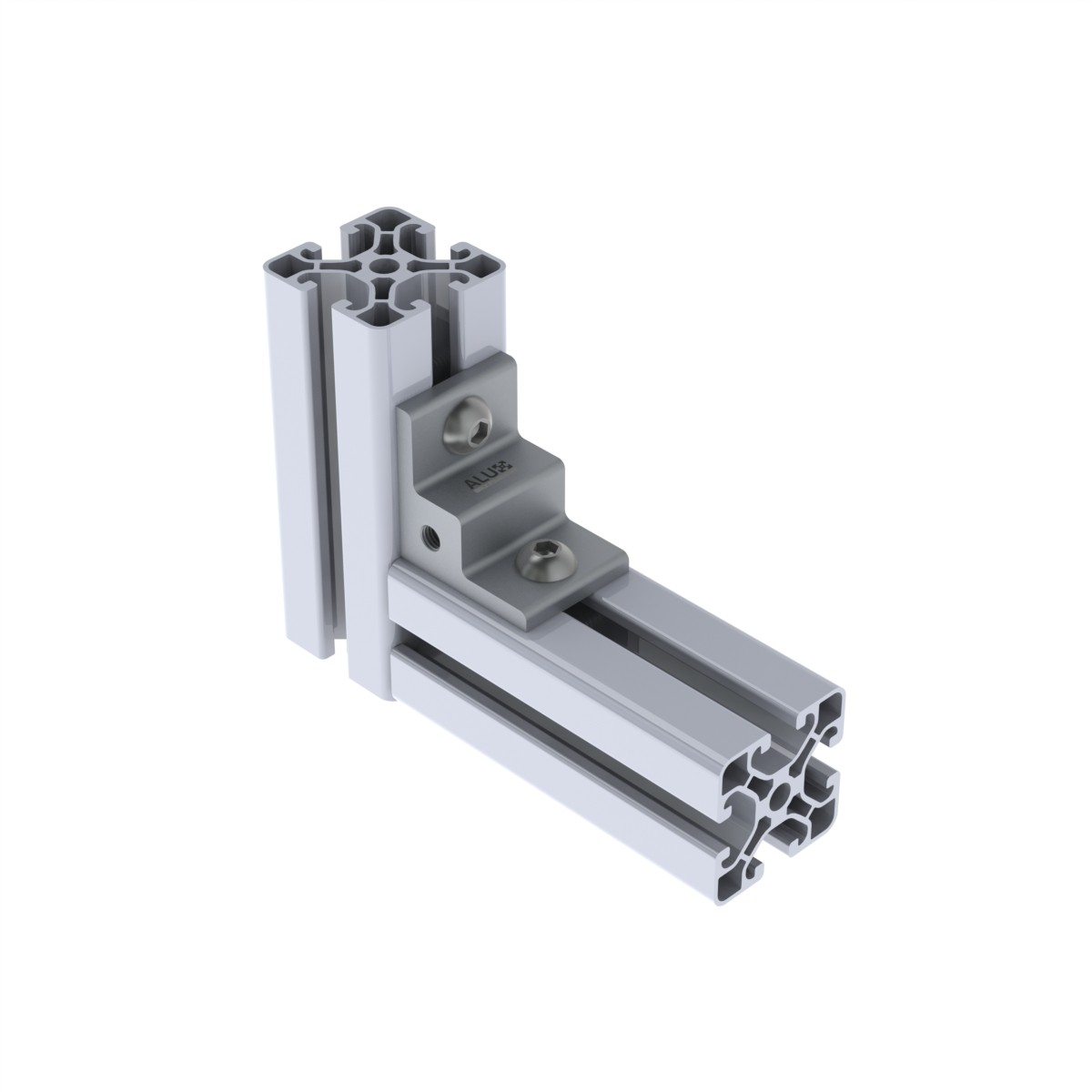

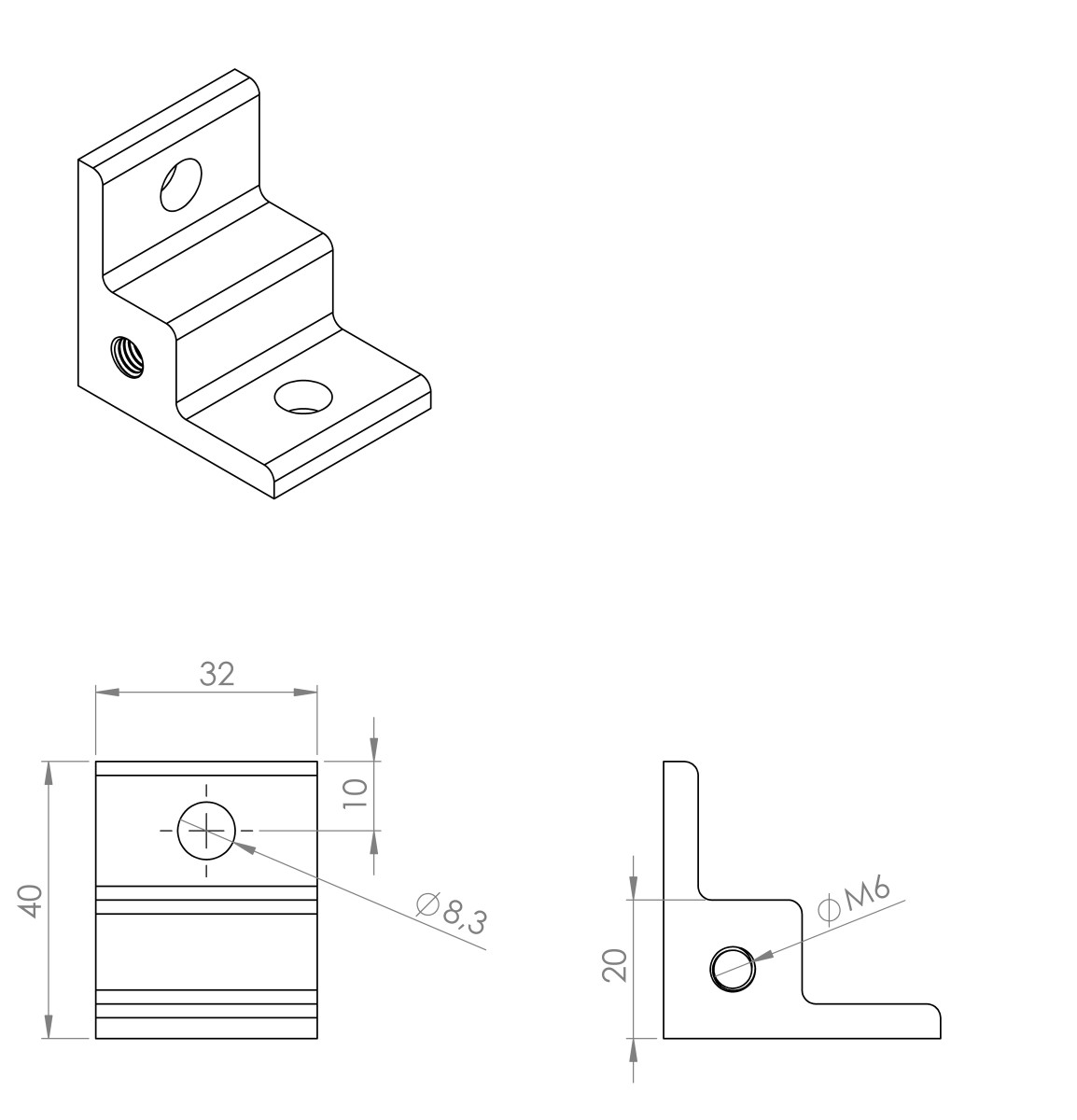

This aluminium corner bracket 4040L-M6 is suitable for connecting 2 aluminium profiles. The bracket is 40 mm high and 32 mm wide. Both contact surfaces are also flat. In addition, this bracket has a hole with a M6 thread, to which a plate can be mounted. The connection angle is anodised aluminium, just like all our profiles.

Look under the tab "connection kit" to find the correct fasteners to use with this connector.
