Lifting eye bolt ISO 3266 M8
Back in stock soon!
Oops, this product is currently out of stock! Leave us your email, and we’ll let you know as soon as it’s available again. Don’t miss out – be the first in line! šāØ
More information can be found here.

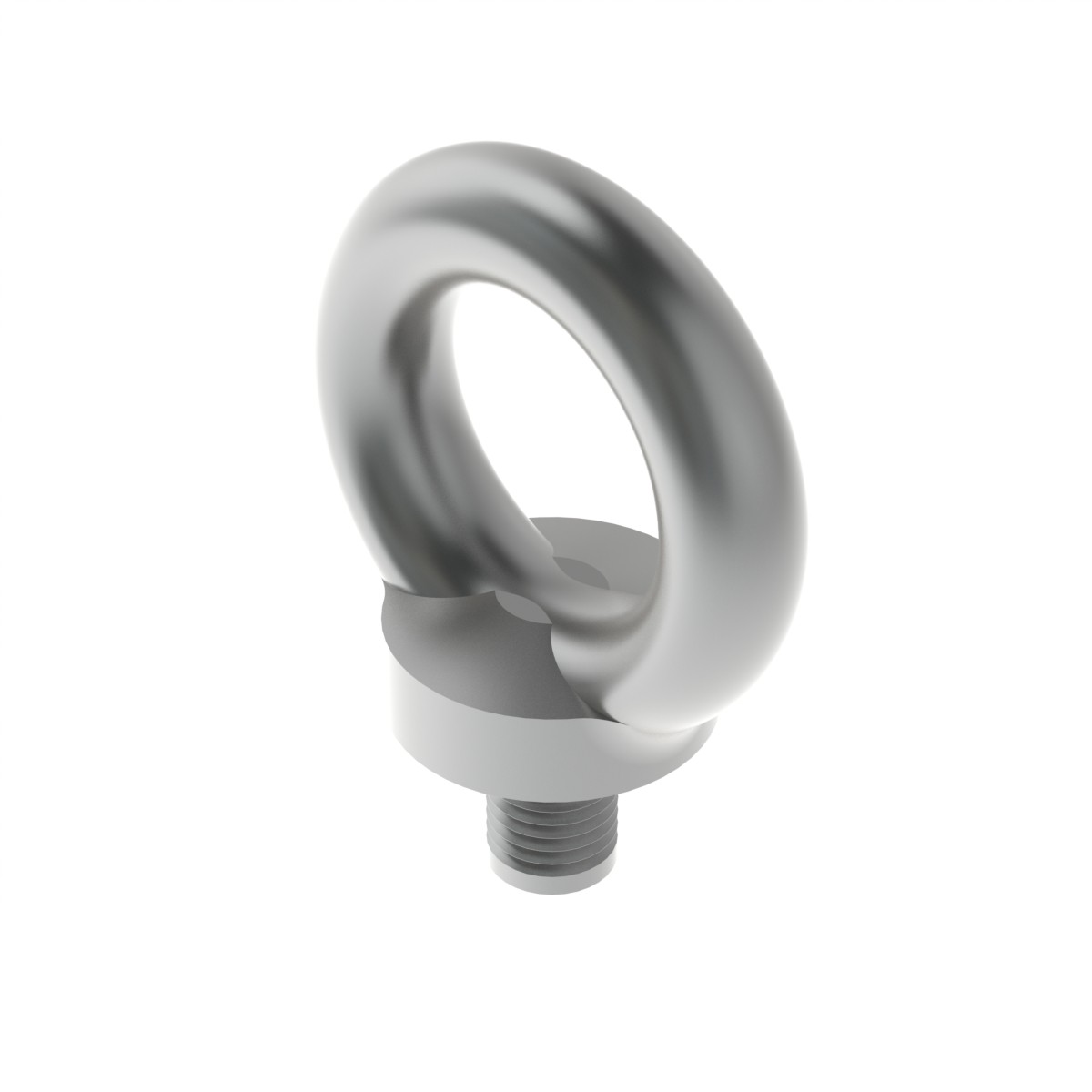

Lifting Eye Bolt ISO 3266 M8 – Steel Lifting Ring Screw for Hoisting Applications
The Lifting Eye Bolt ISO 3266 M8 is a precision-engineered lifting component designed for secure and reliable load attachment in industrial and construction applications. Manufactured from high-grade steel according to ISO 3266 and DIN 580 standard, it provides a safe connection point for lifting, rigging and tensioning systems.
Key Features
- Standard compliant: Produced according to ISO 3266 / DIN 580 for guaranteed dimensional and load consistency.
- Thread size: M8 metric thread with precise tolerance for secure fit in steel and aluminium assemblies.
- Material: High-strength C15E steel (optional stainless version available on request).
- Finish: Hot-dip galvanized or electro-galvanized coating for corrosion resistance.
- Safe working load (WLL): ≈ 140 kg with axial load on one bolt (as per DIN 580 / ISO 3266).
Typical Applications
- Lifting and positioning of machinery and equipment
- Anchoring points for chains, slings and cables
- Mounting points in transport frames and rigging assemblies
- General mechanical and construction use for safe load handling
Technical Details
- Part No.: Lifting Eye Bolt ISO 3266 M8 / DIN 580 M8
- Thread: M8
- Material: Steel C15E (available in stainless steel A2 or A4 on request)
- Surface finish: Hot-dip galvanized / electro-galvanized ISO 4042 / ISO 10684

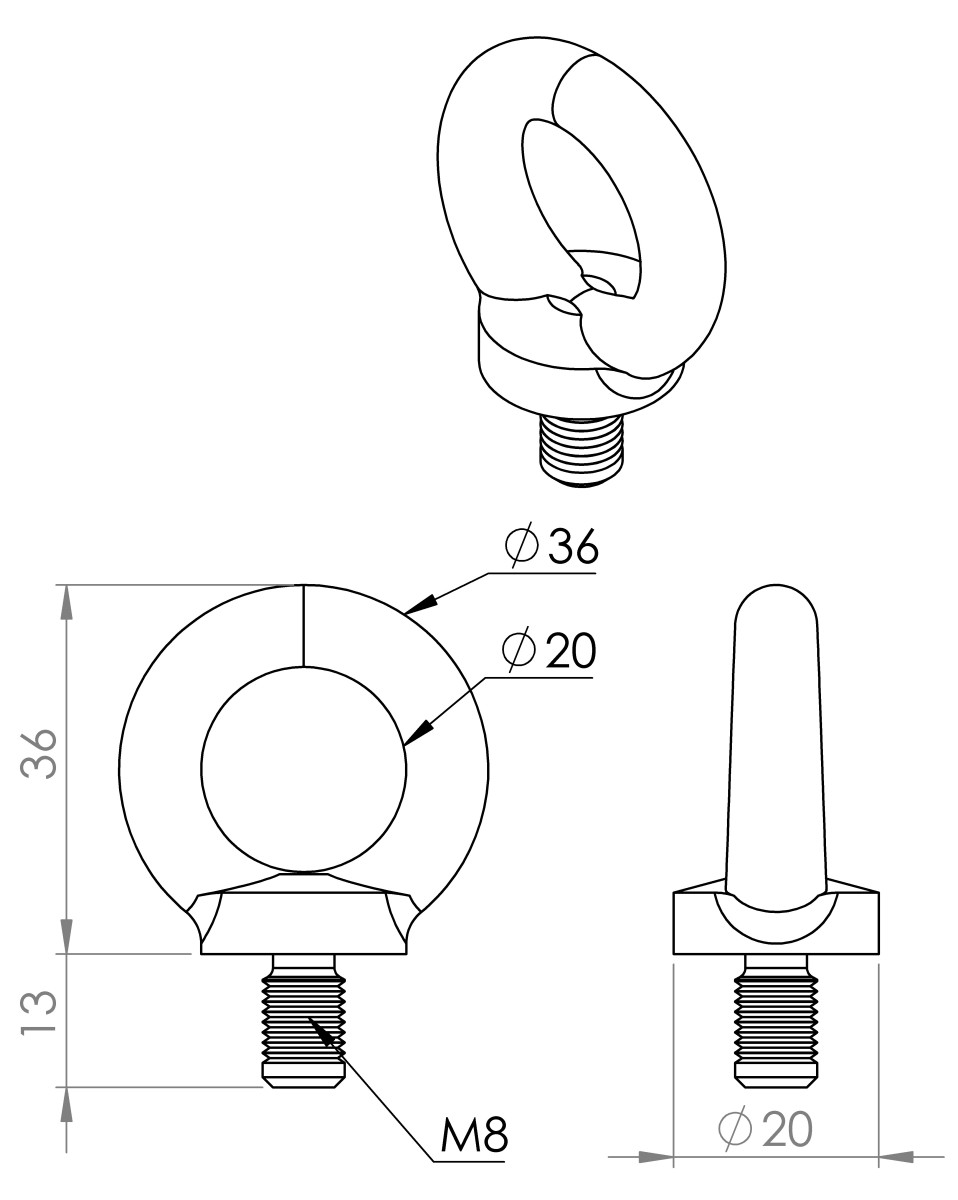

- Dimensions: Ødā = 36 mm, Ødā = 20 mm, l = 13 mm (thread length)
- Working Load Limit (WLL): 140 kg (axial load)
- Standard: ISO 3266 / DIN 580 (2018 revision)
What’s Included
- 1 × Lifting Eye Bolt ISO 3266 M8 (Steel, galvanized)
Why Choose This Product?
This ISO 3266 M8 lifting eye bolt provides a dependable anchor point for lifting applications, machinery handling and mounting operations. Its precision machined thread and standardized design ensure safety, durability and universal compatibility with industrial lifting systems.
