Inner bracket T10

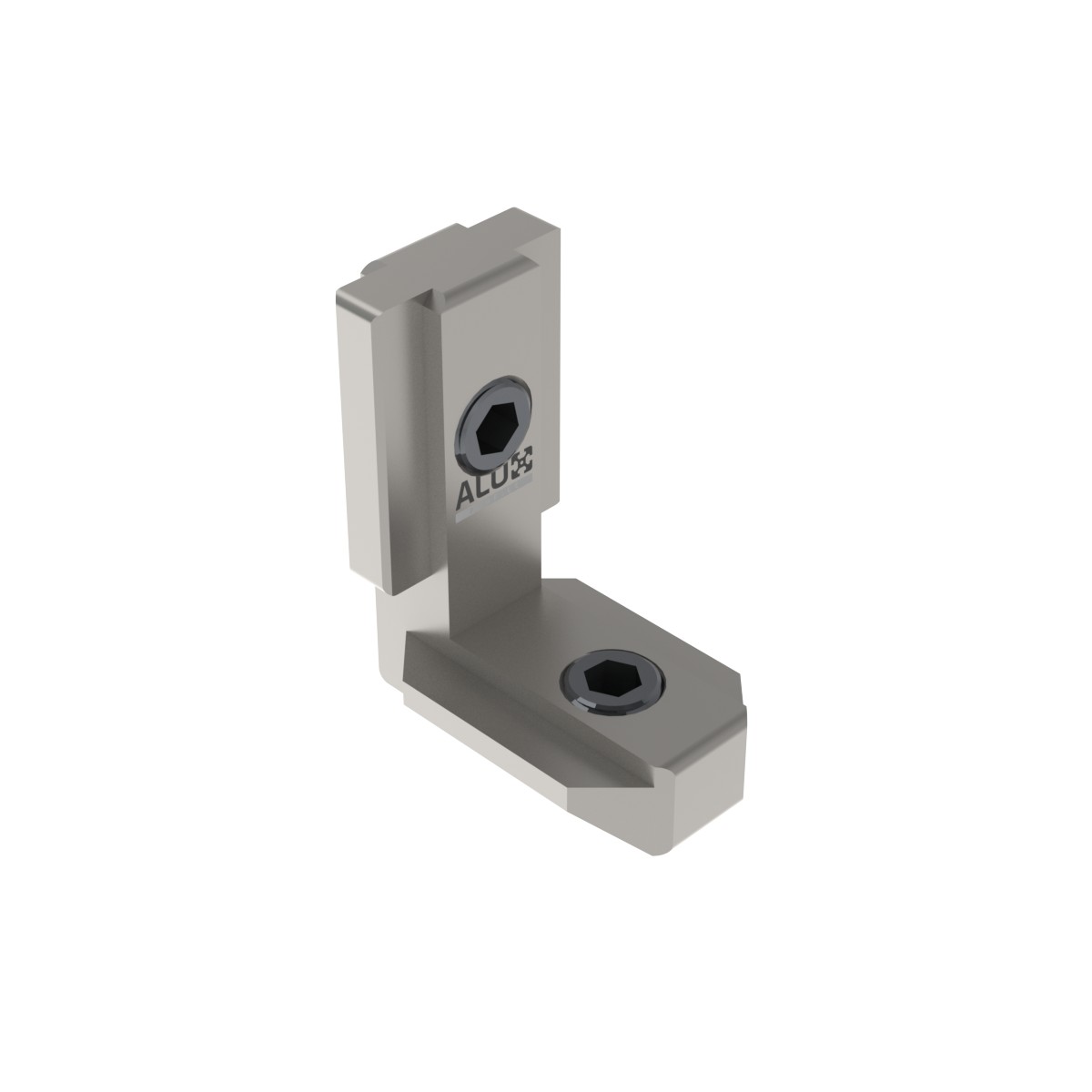

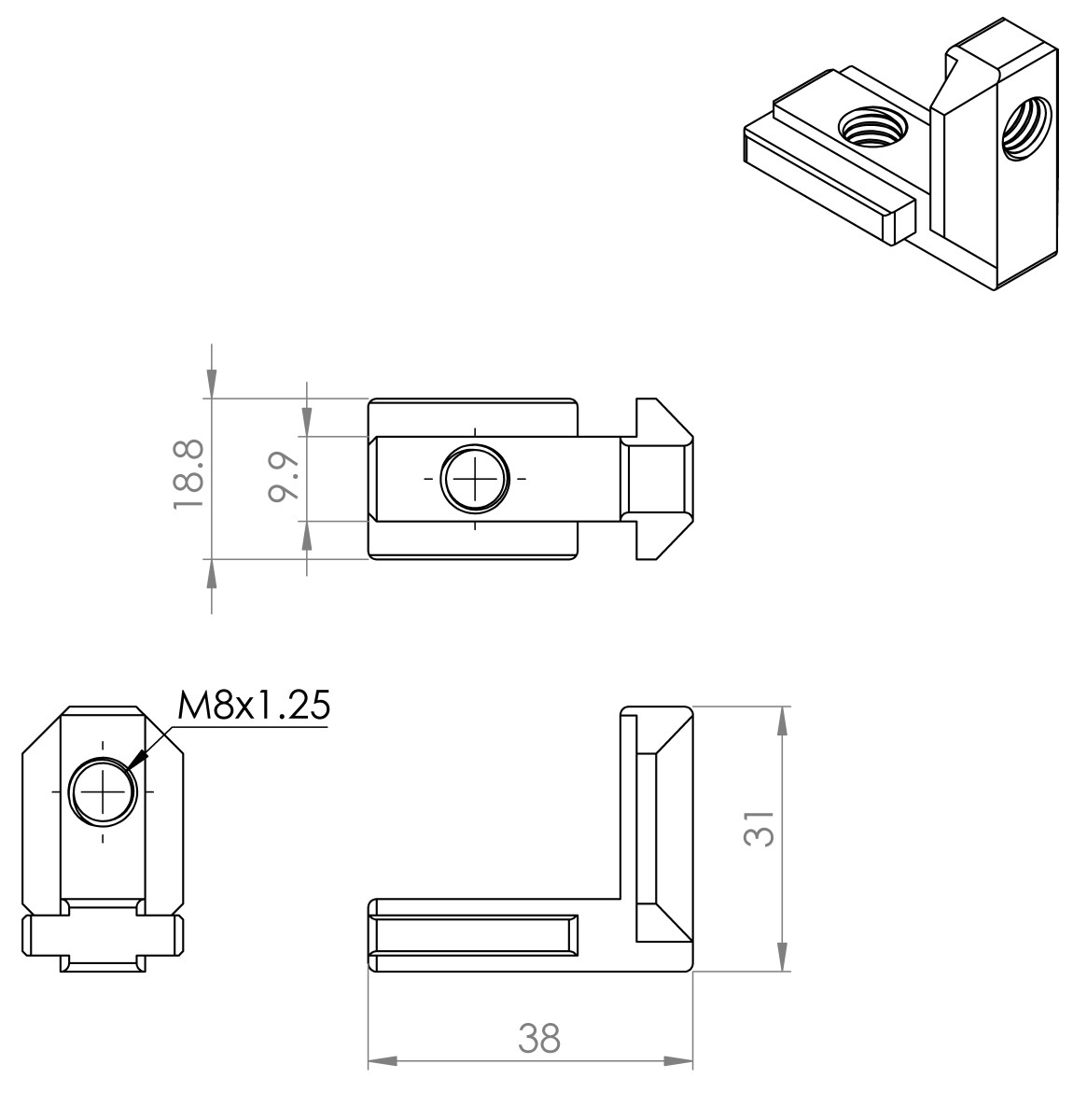

Inner Bracket – T-slot 10 (45 Series) Aluminium Profiles, Zinc Die-Cast, incl. 2x DIN 914 M8x12 Set Screws

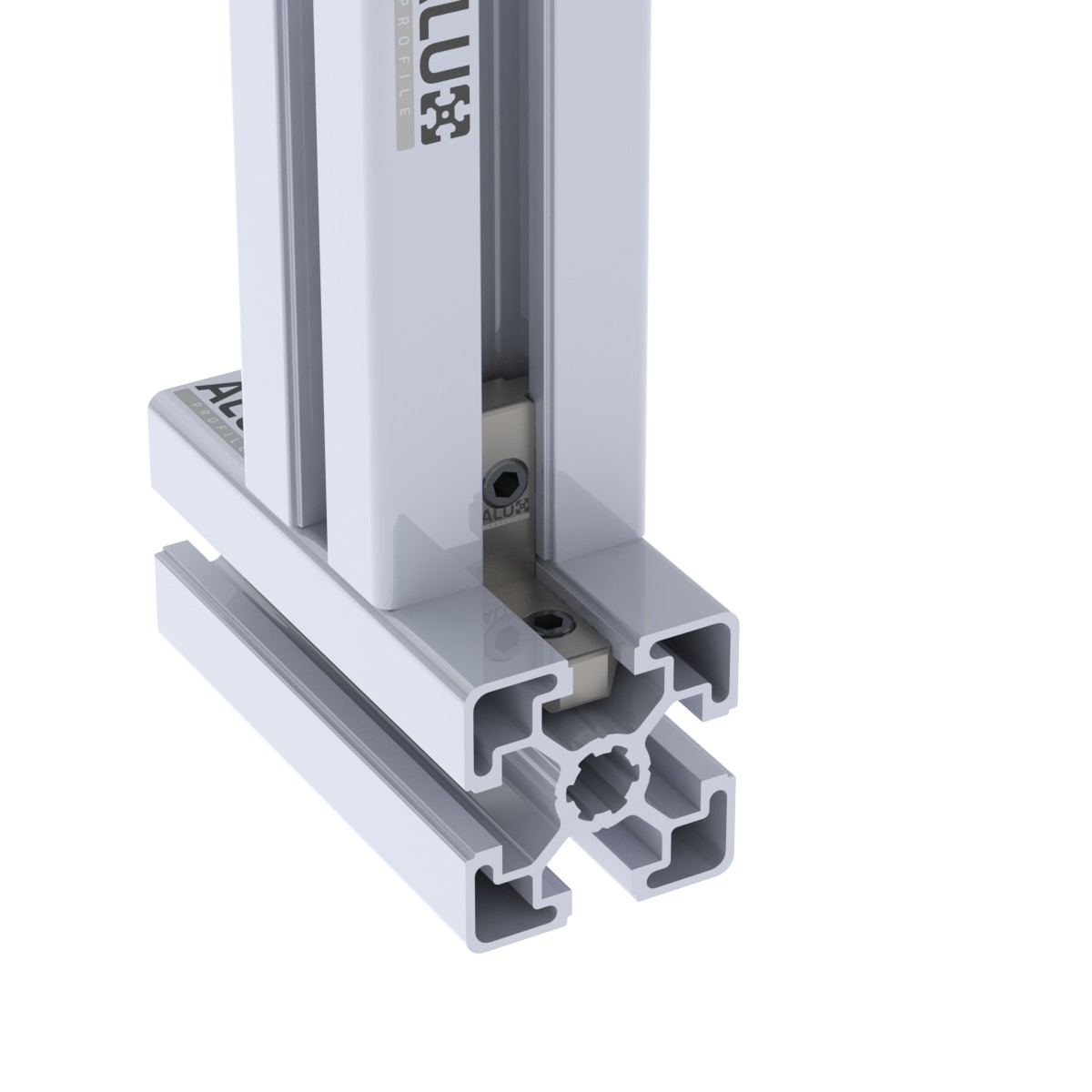

The Inner Bracket  is a practical and cost-effective way to connect T-slot 10, 45 series aluminium construction profiles quickly and neatly from the inside. Because the connector sits largely inside the profile grooves, it helps keep the outside of your frame clean—ideal for machine frames, guards, workstations, prototypes, and general aluminium profile constructions where speed and simplicity matter.

The connector body is made from die-cast zinc, offering a solid fit and reliable performance for everyday builds. Each inner bracket is supplied with 2x DIN 914 M8x12 set screws. Assembly is straightforward: position the connector in the profile, align the second profile, and then tighten the set screws. As you turn the screws, the connector locks into place and fixes the profiles relative to each other—no complex machining or special tools required beyond a standard hex key.

How this connector performs

This type of internal connector is designed mainly to fix profiles in position. Unlike some heavy-duty joining methods, it does not strongly pull the profiles together during tightening. That means it’s not the strongest option for applications with high bending loads, heavy vibration, or where maximum joint rigidity is required.

That said, it’s an excellent solution when you want:

• A fast and economical connection method
• Simple installation with minimal effort
• A clean-looking joint with hardware mostly hidden
• Flexibility in design—because you can add more connectors if needed

For extra strength and improved stability, you can use multiple inner brackets per connection, depending on the load and the size of your construction. This makes it easy to scale up the joint strength without changing the overall design.

Key features

• Suitable for T-slot 10 / 45 series aluminium profiles
• Die-cast zinc connector body
• Includes 2x DIN 914 M8x12 set screws
• Quick installation: insert, align, tighten
• Economical joining method for many standard frame builds
• Strength can be increased by using several connectors per joint
