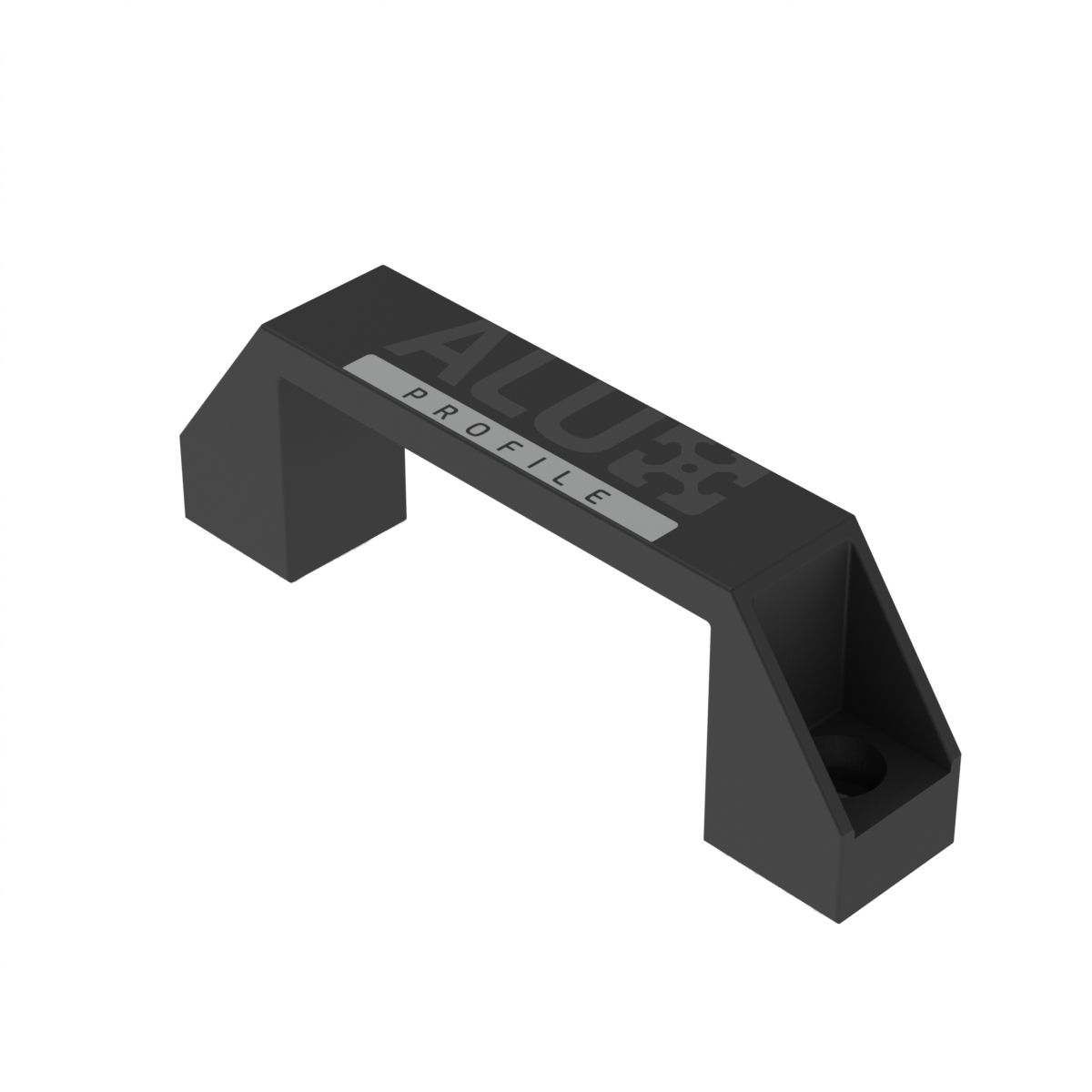

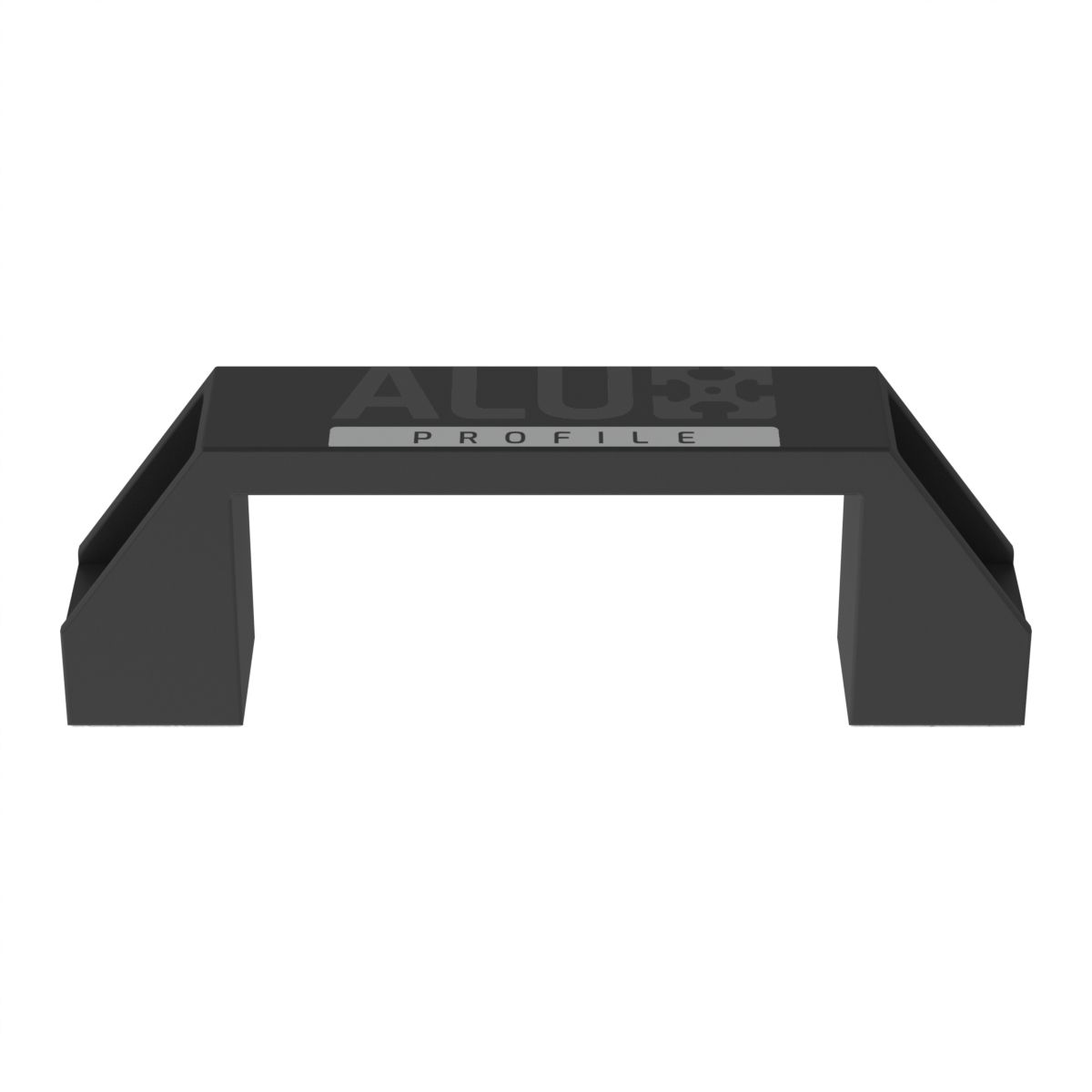

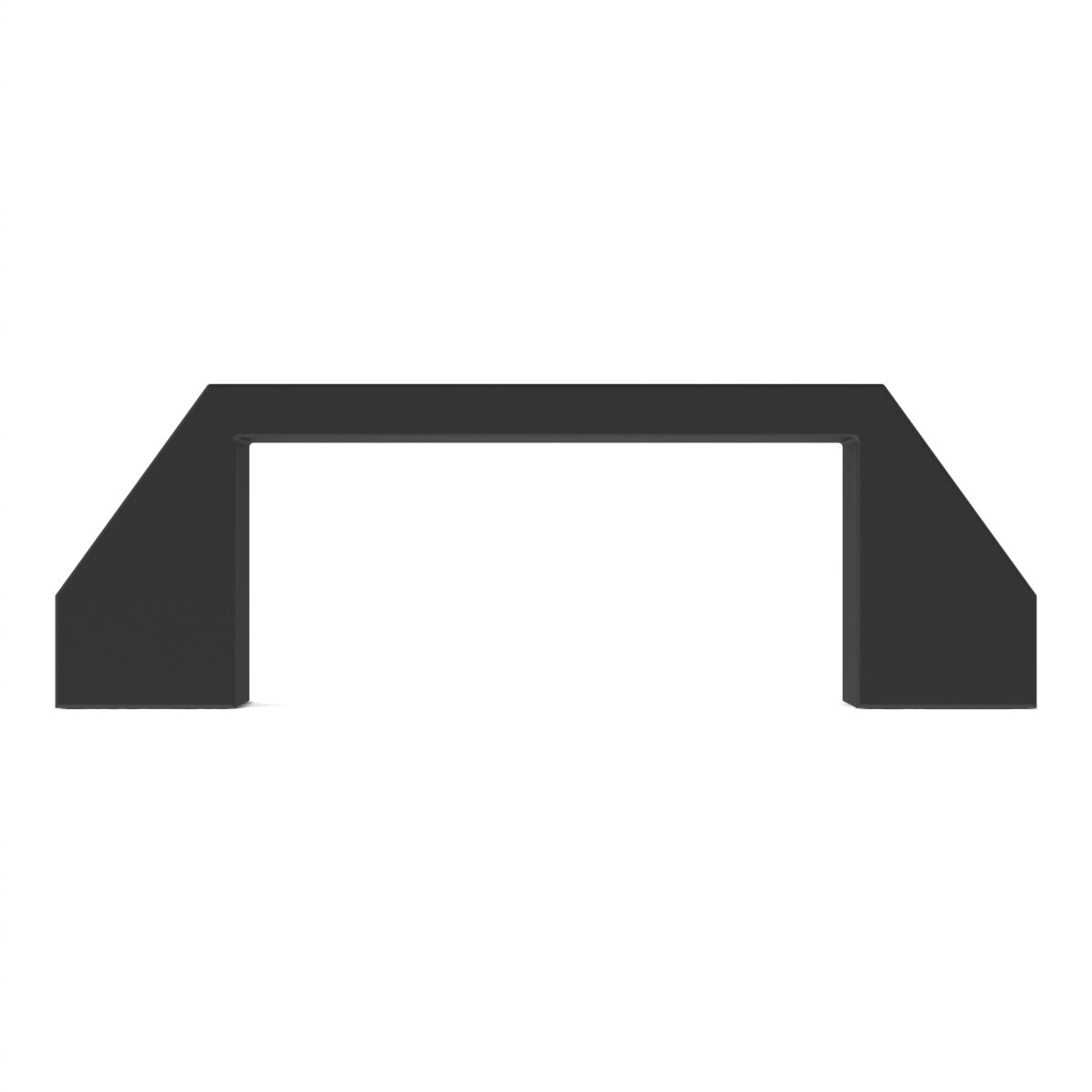

Black M6 pull handle for opening doors and hatches – for Series 20 and 30 aluminium profiles

The black M6 handle for aluminium profiles is a compact and comfortable grip designed for opening, closing and moving doors, access doors, hatches, windows, drawers and panels installed in aluminium-profile structures. It is suitable for machine enclosures, small technical cabinets, workstations, safety guards and various industrial and workshop structures.

The handle can be mounted directly in the structural slots of Series 20 and Series 30 aluminium profiles. Two M6 mounting points provide stable support, while the use of the correct slot nuts allows installation without drilling additional holes in the profile.

Thanks to its compact dimensions, the handle is particularly suitable for smaller structures made from Series 20 profiles. It can also be used with Series 30 profiles when a lightweight, neat and comfortable grip is required for a door, hatch, drawer or sliding panel.

The ergonomically shaped gripping section fits comfortably in the hand and makes the everyday operation of movable structural components easier. The handle can be used when building a new frame as well as when extending or upgrading an existing aluminium-profile system.

The product is made from black plastic. The material version is identified as ABS, while the product description additionally indicates the use of glass-fibre reinforcement. The black surface complements both black anodised profiles and profiles with a natural silver finish.

Handle for doors, hatches, windows and drawers

The M6 opening handle can be used as a practical operating component in technical, industrial and workshop structures. It provides a comfortable gripping point for the controlled opening, closing or movement of a movable structural component.

Typical applications include:

• doors and small access doors in machine enclosures,
• service and inspection hatches,
• windows and sliding protective panels,
• drawers in workbenches and workshop cabinets,
• machine guards made from acrylic, polycarbonate or other panels,
• doors in lightweight safety enclosures,
• covers, panels and access components,
• movable parts of work and assembly stations,
• technical cabinets and storage structures,
• custom projects made from Series 20 and 30 aluminium profiles.

The handle serves as an operating grip. It does not replace a hinge, lock, latch or locking mechanism. If a door, hatch or panel needs to be secured in the closed position, a suitable closing or locking component should be used.

Key features of the M6 handle

• Type: opening handle / hand grip / bow handle
• Material: plastic
• Material version: ABS
• Reinforcement: glass fibre according to the product description
• Colour: black
• Mounting hardware thread: M6
• Number of mounting points: 2
• Compatible profile series: Series 20 and Series 30
• Compatible slot widths: 6 mm and 8 mm
• Mounting method: directly in the aluminium profile slot
• Profile machining: not required
• Adjustment: the handle can be moved along the slot before final tightening
• Removal: the handle can be unscrewed and installed in another position
• Application: doors, access doors, hatches, windows, panels, drawers and machine guards
• Benefits: compact dimensions, comfortable grip, quick installation and a neat structural finish

Mounting the handle to an aluminium profile

The handle is mounted directly in the slot of a structural aluminium profile. Installation requires two ISO 7380 M6 button head socket screws and two slot nuts matched to the geometry of the selected profile series.

First, place two suitable slot nuts in the profile slot. Position the handle in the intended location, align its two mounting holes with the M6 threads in the slot nuts and insert the appropriate screws.

Before final tightening, the handle can be moved along the slot and positioned according to the opening direction, the size of the door, the user’s height and the remaining structural components.

Tighten the screws gradually and alternately so that the handle sits evenly against the profile surface. Avoid overtightening, as this could cause unnecessary stress in the plastic component.

Mounting to Series 20 aluminium profiles

To mount the handle on Series 20 structural aluminium profiles with a 6 mm slot, use two M6×10 button head socket screws and two M6 slot nuts intended for this profile series.

Recommended mounting components:

• 2× ISO 7380-M6x10
• 2× 6-4-M6

The 6-4-M6 slot nuts are designed for Series 20 aluminium profiles with a 6 mm slot. They allow an M6 thread to be positioned inside the slot and enable the handle to be installed without drilling additional holes in the profile.

The ISO 7380-M6x10 screws have a low, rounded head with an internal hex socket. The compact head design is well suited to the small M6 handle and Series 20 profiles and provides a clean, technical finish to the visible mounting points.

Mounting to Series 30 aluminium profiles

For Series 30 structural aluminium profiles with an 8 mm T-slot, use two black M6×12 button head socket screws and two M6 T-slot nuts designed specifically for this profile series.

Recommended mounting components:

• 2× ISO 7380-M6x12 BLACK
• 2× 8-4-M6.30

The 8-4-M6.30 T-slot nuts are matched to the geometry of the 8 mm T-slot used in Series 30 aluminium profiles. The spring-loaded ball helps retain the nut in the selected position, while the self-aligning design makes it easier to position the thread centrally in the slot.

The black ISO 7380-M6x12 BLACK screws complement the surface of the handle. The rounded head provides a neat finish to the visible connection and reduces the number of protruding, sharp edges.

M6 handle installation instructions

1. Select the mounting position: determine the position of the handle on a door, hatch, drawer, panel or directly on an aluminium-profile frame.

2. Select the correct slot nuts: use 6-4-M6 for Series 20 profiles or 8-4-M6.30 for Series 30 profiles.

3. Place the slot nuts in the slot: insert two slot nuts into the appropriate profile slot and set their spacing to match the mounting holes in the handle.

4. Position the handle: place the grip against the profile surface and align both holes with the M6 threads in the slot nuts.

5. Insert the correct screws: use two ISO 7380-M6x10 screws for Series 20 or two black ISO 7380-M6x12 BLACK screws for Series 30.

6. Adjust the position: before fully tightening, check the height, opening direction and comfort of the grip.

7. Tighten the handle: tighten both screws gradually and alternately, checking that the handle sits evenly against the profile.

8. Check stability: before use, make sure that the handle does not rotate, move or show any play.

After a period of use, especially in structures that are opened and closed frequently, it is advisable to check the tightness of both screws again. To move the handle, simply loosen the mounting, move the slot nuts along the slot or install the grip in another position.

Applications of the M6 handle in industrial structures

The M6 handle for aluminium profiles can be used wherever a compact and comfortable gripping point is required on a movable or removable structural component.

The product is suitable for:

• enclosures for machines and small equipment,
• safety enclosures and protective guards,
• doors and access doors made from aluminium profiles,
• service hatches and inspection panels,
• sliding acrylic or polycarbonate guards,
• technical and workshop cabinets,
• drawers and pull-out modules,
• work and assembly stations,
• workshop trolleys and lightweight mobile structures,
• racks, tables and technical frames,
• custom constructions made from Series 20 and 30 profiles.

Benefits of the black opening handle

• provides a comfortable gripping point for opening and closing structural components,
• can be used as a handle for doors, access doors, hatches, windows, panels and drawers,
• has compact dimensions suitable for smaller structures,
• is designed for mounting with two M6 screws,
• can be mounted to Series 20 and 30 aluminium profiles,
• is compatible with 6 mm and 8 mm slots,
• can be installed without drilling additional holes in the profile,
• allows the position to be adjusted along the slot before tightening,
• can be easily removed and reinstalled,
• is made from lightweight plastic,
• features glass-fibre reinforcement according to the product description,
• the black colour complements silver and black aluminium profiles,
• is suitable for industrial, workshop and technical applications,
• improves the operation of doors, hatches and movable panels,
• provides a clean and professional structural finish.

Technical data

• Product type: opening handle / handle for aluminium profiles
• Material: plastic
• Version: ABS
• Colour: black
• Mounting thread: M6
• Number of mounting points: 2
• Compatible profile series: Series 20 and Series 30
• Mounting to Series 20: 2× ISO 7380-M6x10 + 2× 6-4-M6
• Mounting to Series 30: 2× ISO 7380-M6x12 BLACK + 2× 8-4-M6.30

The product page does not specify the maximum permissible load of the handle. If the handle is intended for moving, lifting or operating heavy components, check the strength of the complete structure, the mounting method and the load applied to both mounting points.

The black M6 handle for opening doors, hatches, windows and drawers is a functional addition to structures made from Series 20 and 30 aluminium profiles. Its compact size, two mounting points and direct installation in the profile slot make it easy to create a neat and comfortable grip for industrial, workshop or technical structures.
