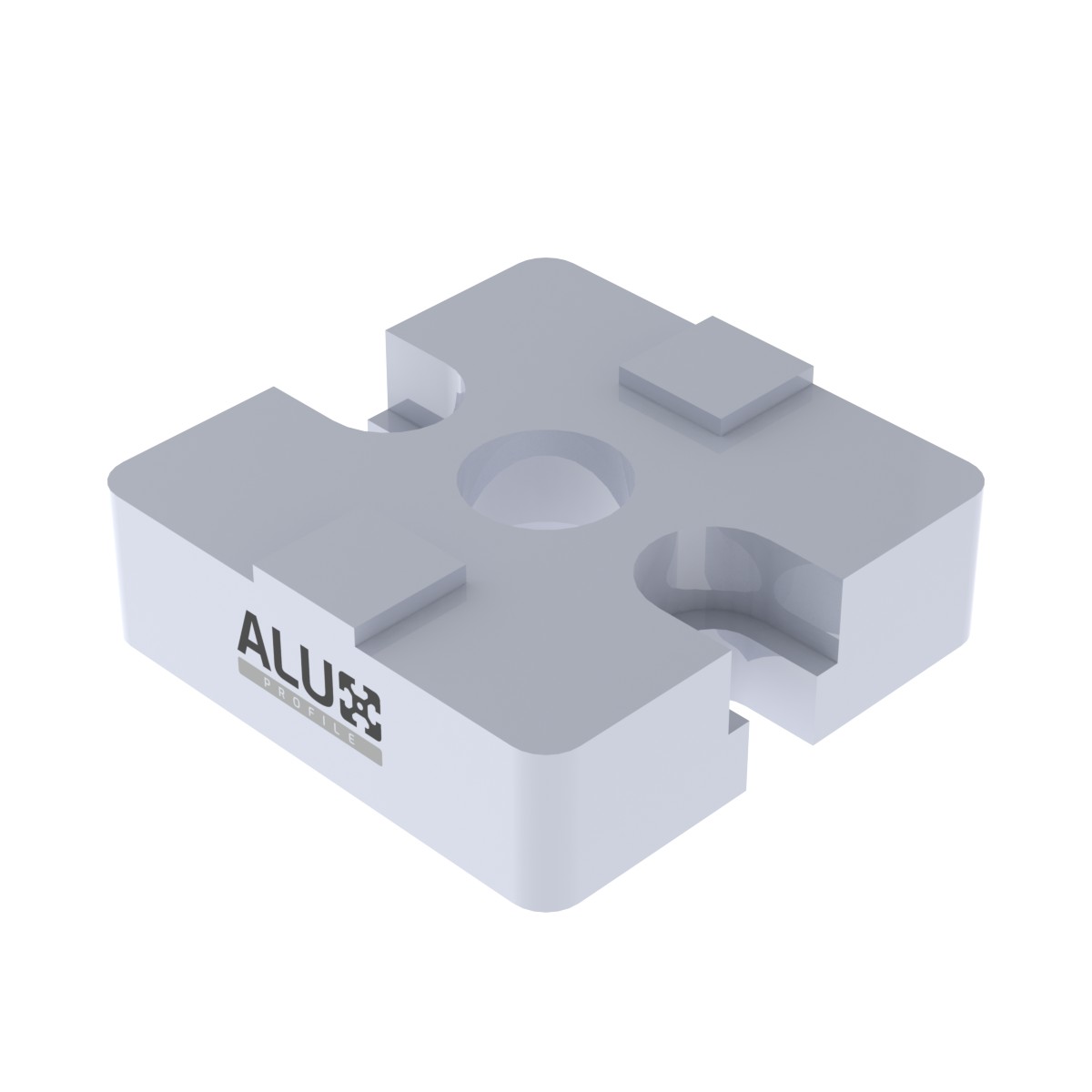

End connector 45-series

End Connector for 45x45 Aluminium Profiles (45 Series) – Compact, Rigid Connection

Create strong, clean and space-saving joints in your aluminium extrusion builds with this End Connector for 45x45 (45 series) aluminium profiles. The connector bolts into the end face of a 45x45 T-slot profile using a single screw, and then the assembly is fastened to a second profile with two slot bolts and T-slot nuts. This gives you a rigid connection with a professional finish—ideal for machine frames, workstations, enclosures, industrial automation and modular constructions using T-slot aluminium profiles.

Fast mounting with standard fasteners

• Connection to the end of the 45x45 profile: 1× ISO 14580 M12x30 bolt
• Connection to the second profile (T-slot mounting): 2× ISO 7380 M6x20 bolts + 2× 10-4-M6.45 T-slot nuts

Typical applications

• 45x45 aluminium profile frames and T-slot extrusion structures
• Machine frames and industrial automation builds
• Workbenches, bases, carts and support frames
• Enclosures, guarding and modular equipment

Key specifications

• Product type: End connector / aluminium profile connector (45 series)
• Compatible profiles: 45x45 aluminium profiles
• Fasteners required: 1× ISO 14580 M12x30; 2× ISO 7380 M6x20; 2× 10-4-M6.45 T-slot nuts
