10- Central connector 0 degrees

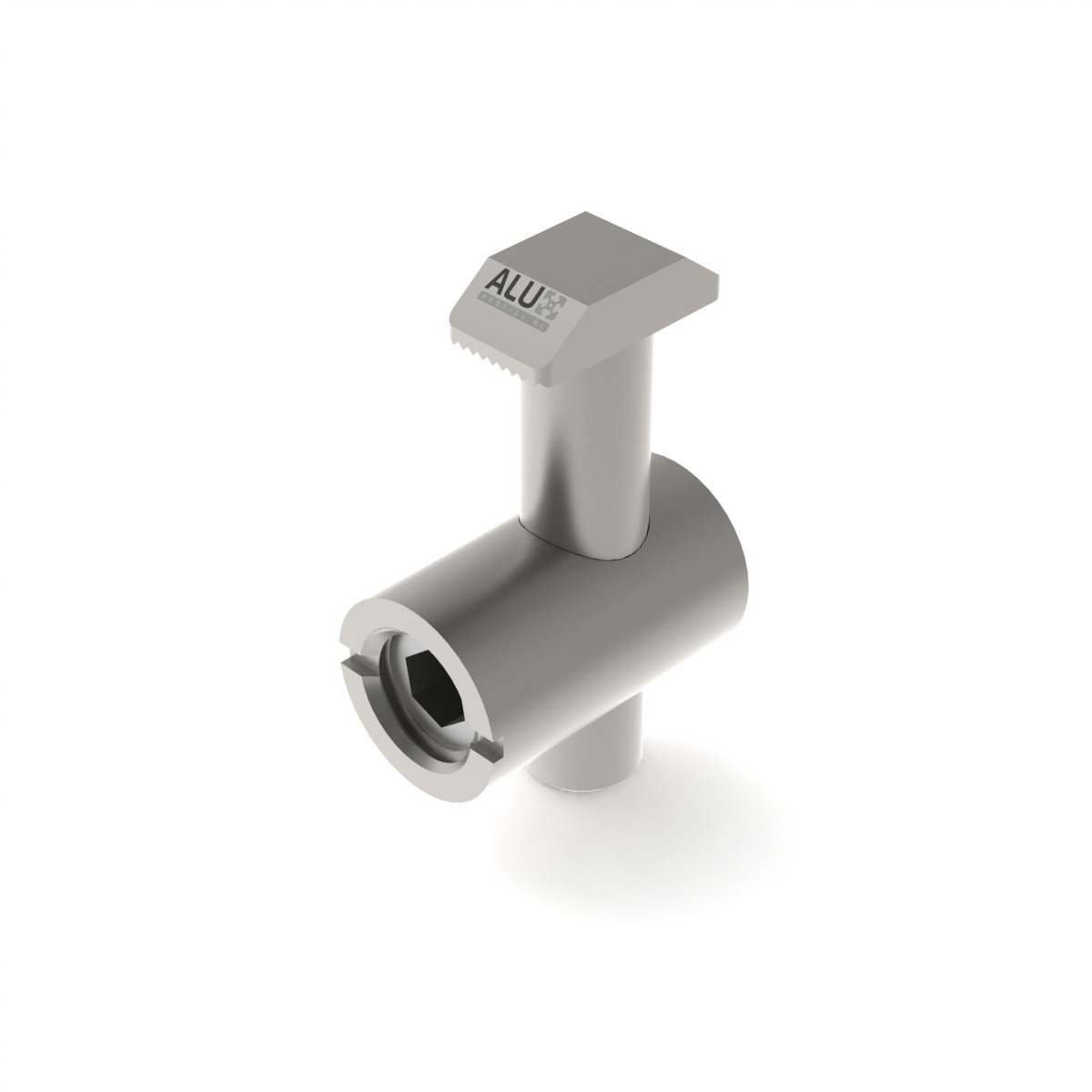

Central connector 0 degrees (Ø17 mm) – internal fast connector for 45-series aluminium profiles (T-slots stay free)

The Central connector 0 degrees (Ø17 mm) is a compact internal connector designed for inline (0°) connections in 45-series aluminium T-slot profile constructions. It’s an excellent choice when you want a clean-looking joint while keeping the profile T-slots available for mounting—for example for plates, panels, brackets, sensors, cable holders, or accessories.

Because the connector sits mostly inside the profile, it creates a neat external appearance with minimal visible hardware. This makes it ideal for machine frames, guarding, workstations, automation structures, and modular 45-series builds where both aesthetics and usable slot space matter.

Installation (requires profile machining)

To mount the 45-series central connector, you need to mill or drill an access hole in the profile. The hole position along the profile depends on the profile system (profile geometry and connector location). The connector is inserted and tightened through the access hole using a hex key. Once tightened, the connector locks into the slot and clamps the inline joint securely.

Why choose this 45-series central connector?

• Designed for 45-series profiles with a robust Ø17 mm connector body
• Inline (0°) connection with an internal connector solution
• Keeps T-slots free for later mounting and adjustments
• Clean look: minimal visible hardware on the outside
• Fast assembly once the access hole is prepared

0° and 90° versions

This is the 0-degree version for inline connections. A 90-degree version is also available for right-angle joints when you want the same “slots stay open” benefit.
